Camshaft Position (CMP) Sensor - 3.7L Ti-VCT: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Air Cleaner(ACL) outlet pipe and theACL. For additional information, refer to Intake Air Distribution and Filtering .

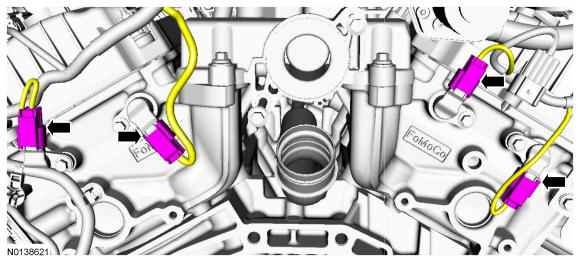

  2. GFD92887Courtesy of FORD MOTOR COMPANY
    • To install, tighten to 10 Nm (89 lb-in).

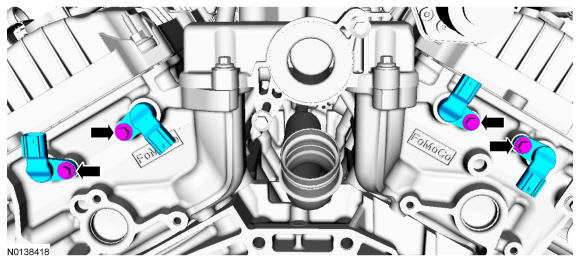

    GFD92888Courtesy of FORD MOTOR COMPANY
