Component Location

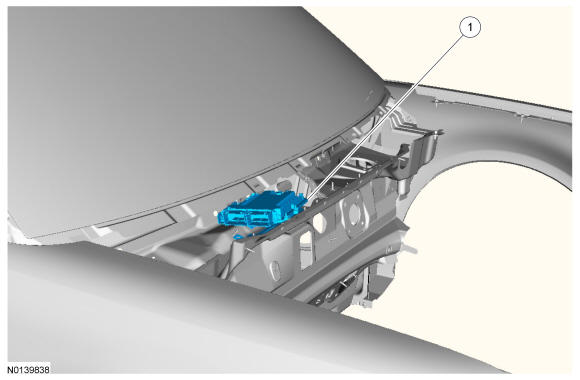

PCM Location -
| Item | Description | Comments |
|---|---|---|
| 1 | PCM | - |

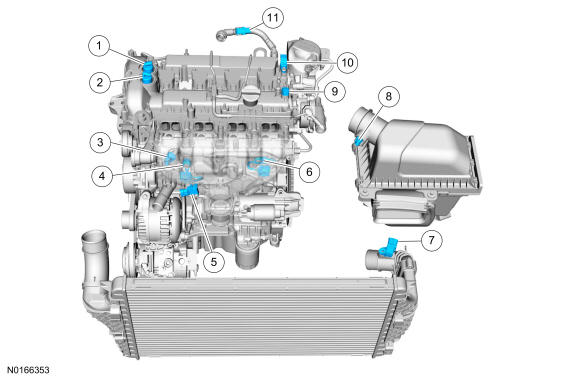

Front Engine Sensor Locations - 2.0L GTDI
| Item | Description | Comments |
|---|---|---|
| 1 | Exhaust VCT oil control solenoid | - |
| 2 | Intake VCT oil control solenoid | - |
| 3 | FRP sensor | - |
| 4 | LeftKS | - |
| 5 | MAP sensor | - |
| 6 | Right KS | - |
| 7 | TCBP /CACT sensor | - |
| 8 | IAT sensor | - |
| 9 | Intake CMP sensor | - |
| 10 | Exhaust CMP sensor | - |
| 11 | Crankcase pressure sensor | - |

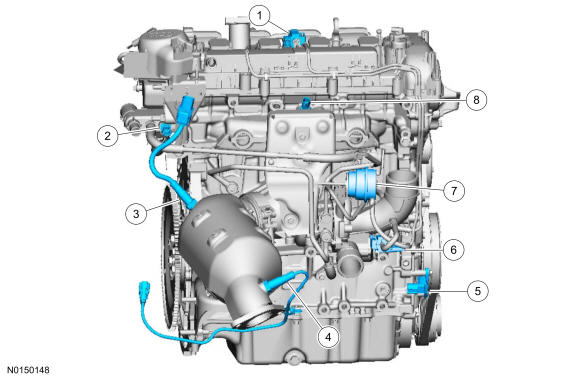

Rear Engine Sensor Locations - 2.0L GTDI
| Item | Description | Comments |
|---|---|---|
| 1 | Turbocharger bypass valve solenoid | - |
| 2 | ECT sensor | - |
| 3 | HO2S | - |
| 4 | CMS | - |
| 5 | CKP sensor | - |
| 6 | Turbocharger wastegate regulating valve solenoid | - |
| 7 | Wastegate actuator | - |
| 8 | CHT sensor | - |

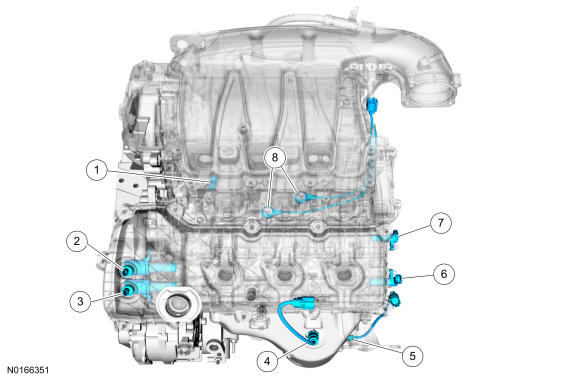

Front Engine Sensor Locations - 3.7L Ti-VCT
| Item | Description | Comments |
|---|---|---|
| 1 | CHT sensor | - |
| 2 | LH intake VCT oil control solenoid | - |
| 3 | LH exhaust VCT oil control solenoid | - |
| 4 | LH HO2S | - |
| 5 | LH CMS | - |
| 6 | LH exhaust CMP sensor | - |
| 7 | LH intake CMP sensor | - |
| 8 | KS | - |

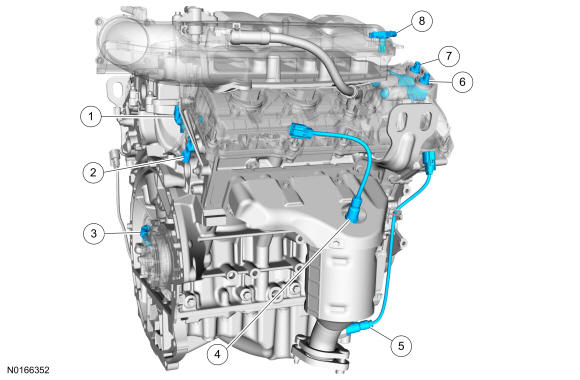

Rear Engine Sensor Locations - 3.7L Ti-VCT
| Item | Description | Comments |
|---|---|---|
| 1 | RH intake CMP sensor | - |
| 2 | RH exhaust CMP sensor | - |
| 3 | CKP sensor | - |
| 4 | RH HO2S | - |
| 5 | RH CMS | - |
| 6 | RH exhaust VCT oil control solenoid | - |
| 7 | RH intake VCT oil control solenoid | - |
| 8 | MAPT sensor | - |

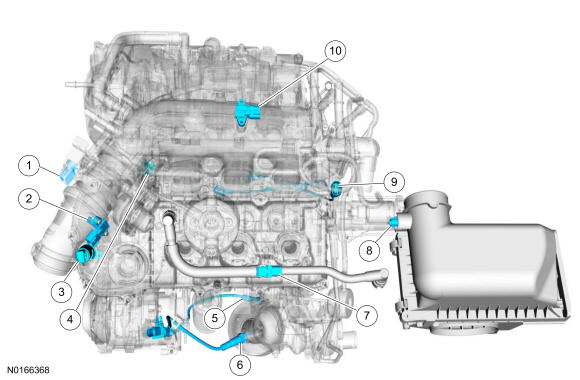

Front Engine Sensor Locations - 3.5L GTDI
| Item | Description | Comments |
|---|---|---|
| 1 | TP sensor | - |
| 2 | TCBP /CACT sensor | - |
| 3 | LH VCT oil control solenoid | - |
| 4 | FRP sensor | - |
| 5 | LH HO2S | - |
| 6 | LH CMS | - |
| 7 | Crank case pressure sensor | - |
| 8 | IAT sensor | - |
| 9 | KS sensors | - |
| 9 | MAP /IAT2 sensor | - |

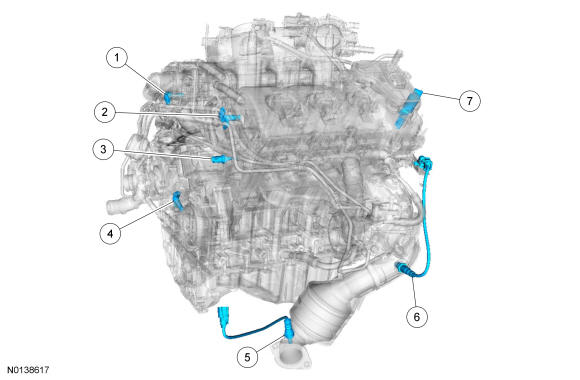

Rear Engine Sensor Locations - 3.5L GTDI
| Item | Description | Comments |
|---|---|---|
| 1 | LH CMP sensor | - |
| 2 | RH CMP sensor | - |
| 3 | CHT sensor | - |
| 4 | CKP sensor | - |
| 5 | RH CMS | - |
| 6 | RH HO2S | - |
| 7 | RH VCT oil control solenoid | - |
