Selector Lever Cable: Installation

All vehicles

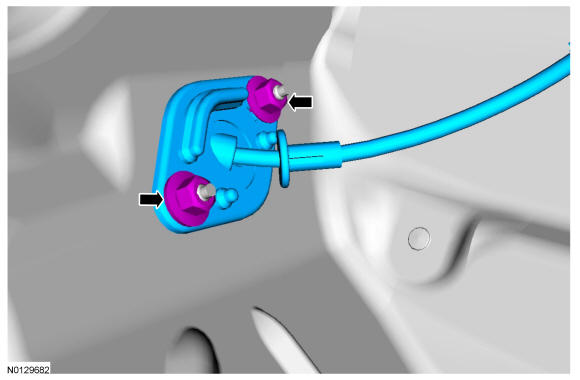

1. • Tighten to 7 Nm (62 lb-in).

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Route the selector lever cable under the heater housing as noted during removal.

   Courtesy of FORD MOTOR COMPANY

3. Courtesy of FORD MOTOR COMPANY

4. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever housing and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever housing.

   Courtesy of FORD MOTOR COMPANY

5. Courtesy of FORD MOTOR COMPANY

6. Courtesy of FORD MOTOR COMPANY

7. Courtesy of FORD MOTOR COMPANY

8. Install the selector lever bezel. Refer to Selector Lever Bezel .

9. Courtesy of FORD MOTOR COMPANY

10. Courtesy of FORD MOTOR COMPANY

6F35

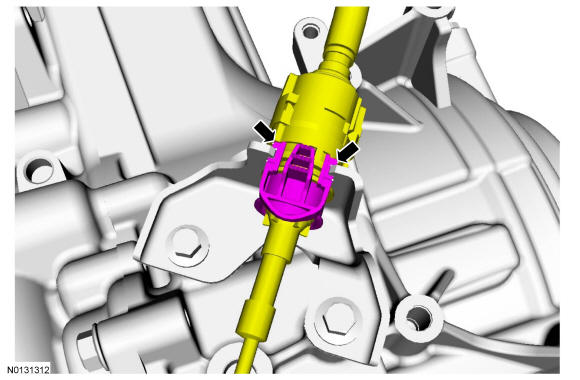

11. NOTE: When installing the selector lever cable, make sure that both selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.

    Courtesy of FORD MOTOR COMPANY

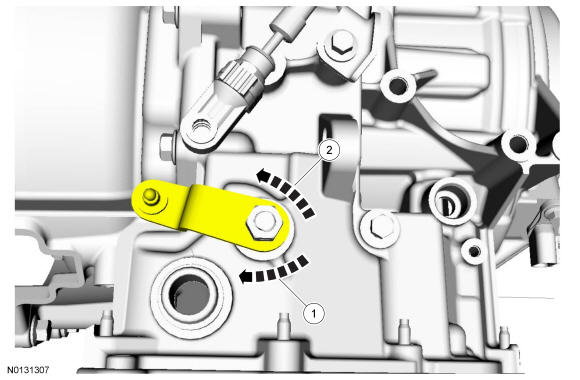

12. 1. Rotate the manual control lever clockwise until it stops.
    2. Rotate the manual control lever counterclockwise 1 detent.

    Courtesy of FORD MOTOR COMPANY

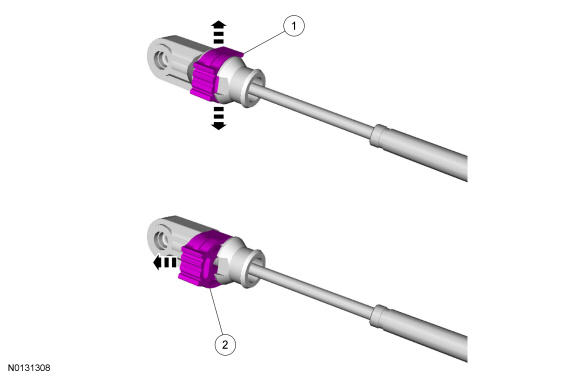

13. 1. Carefully pry outward the adjuster lock tabs.
    2. While holding the adjuster lock tabs outward, slide the lock to unlock the selector lever cable.

    Courtesy of FORD MOTOR COMPANY

14. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

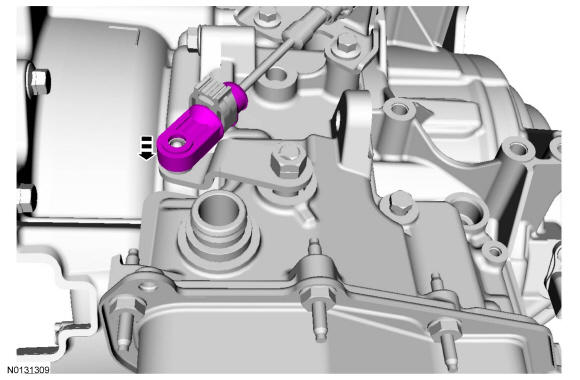

    NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

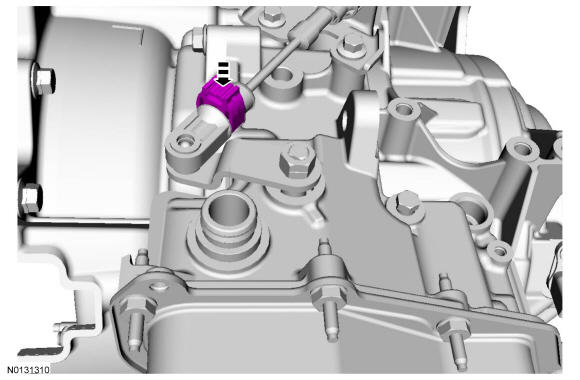

    Courtesy of FORD MOTOR COMPANY

15. NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

    Courtesy of FORD MOTOR COMPANY

16. Install the ACL assembly. Refer to Intake Air Distribution and Filtering .

    6F50/6F55

17. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.

    Courtesy of FORD MOTOR COMPANY

18. 1. Rotate the manual control lever clockwise until it stops.
    2. Rotate the manual control lever counterclockwise one detent.

    Courtesy of FORD MOTOR COMPANY

19. 1. Gently pry the latch up.
    2. Push the lock tab to slide it over.

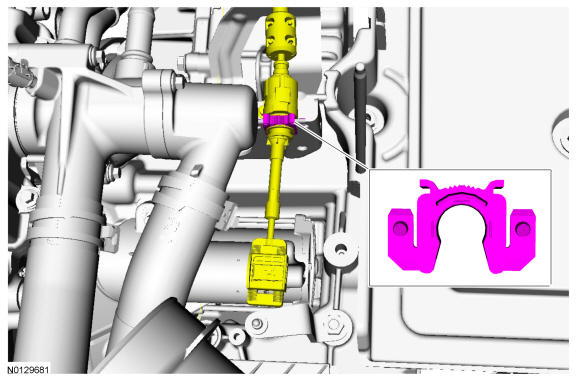

    Courtesy of FORD MOTOR COMPANY

20. Courtesy of FORD MOTOR COMPANY

21. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

    Courtesy of FORD MOTOR COMPANY

23. Install the ACL and outlet pipe. Refer to Intake Air Distribution and Filtering .

    All vehicles

24. Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
