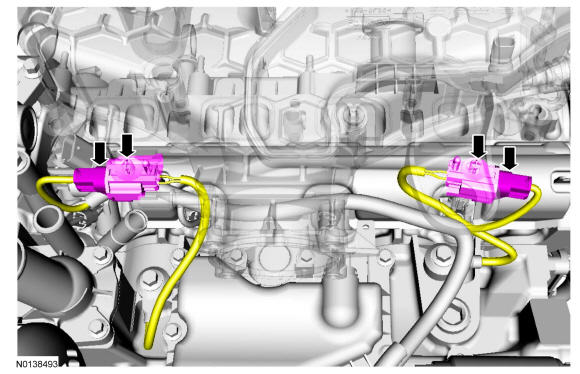

Knock Sensor (KS) - 2.0L GTDI: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:

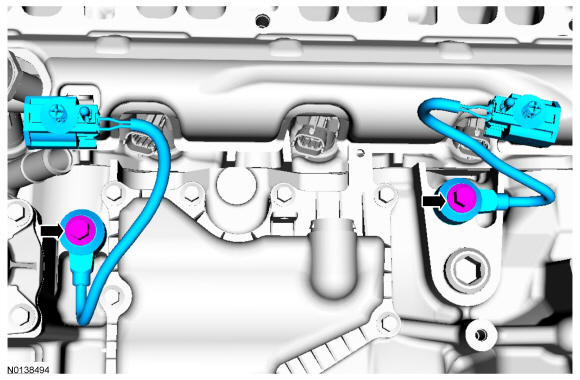

The RH KS must be installed in the 6 o'clock position and the LH KS must be installed in the 3 o'clock position. Failure to follow these instructions may result in damage to the engine.
- To install, tighten to 20 Nm (177 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
