Electronic Engine Controls: Notes

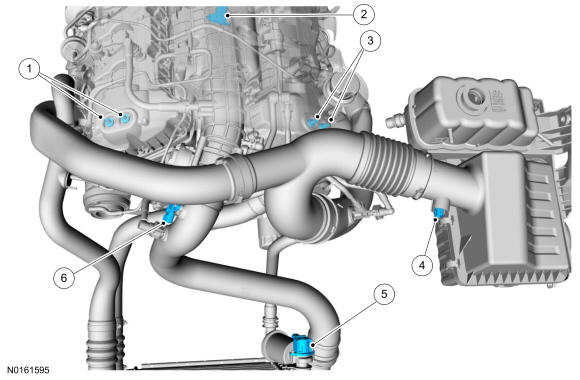

Engine Sensor Locations: Front
| Item | Description |
|---|---|
| 1 | Right Hand (RH) Variable Camshaft Timing (VCT) Oil Control Solenoids |
| 2 | Manifold Absolute Pressure (MAP) /Intake Air Temperature 2 (IAT2) |
| 3 | Left Hand (LH) Variable Camshaft Timing (VCT) Oil Control Solenoids |
| 4 | Intake Air Temperature (IAT) Sensor |
| 5 | Turbocharger Bypass Valve |
| 6 | Turbocharger Boost Pressure (TCBP) /Charge Air Cooler Temperature (CACT) Sensor |

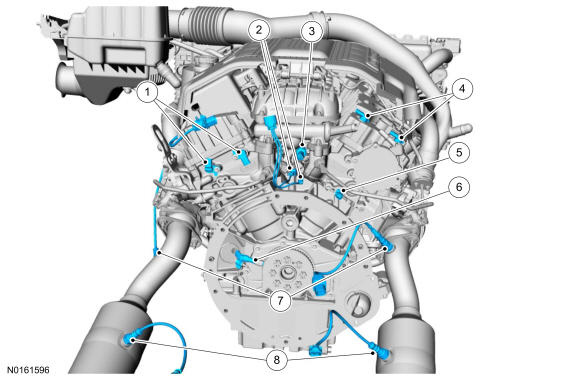

Engine Sensor Locations: Rear
| Item | Description |
|---|---|
| 1 | LH Camshaft Position (CMP) Sensors |
| 2 | Knock Sensor (KS) |
| 3 | Fuel Rail Pressure (FRP) Sensor |
| 4 | RH Camshaft Position (CMP) Sensors |
| 5 | Cylinder Head Temperature (CHT) Sensor |
| 6 | Crankshaft Position (CKP) Sensor |
| 7 | Heated Oxygen Sensor (HO2S) |
| 8 | Catalyst Monitor Sensors |

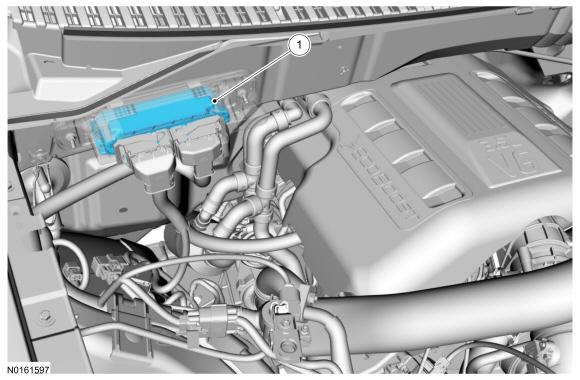

Engine Sensor Locations: Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
