Fuel Pump Control Module: Installation
1.

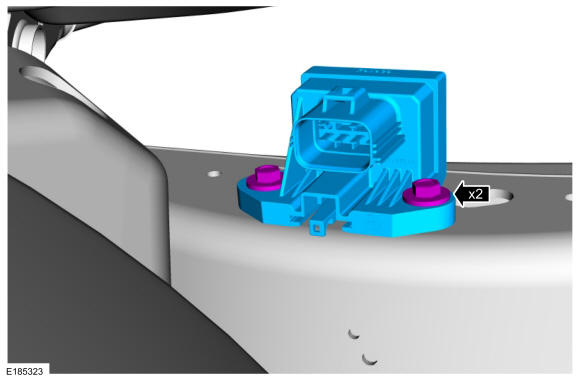

Install the FPCM, then install the FPCM bolts and tighten to 9 Nm (80 lb-in).
Courtesy of FORD MOTOR COMPANY
2.

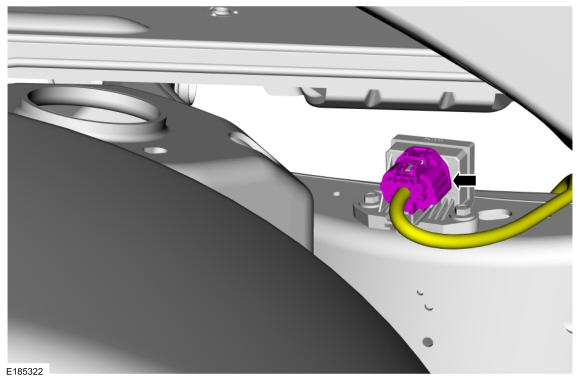

Connect the FPCM electrical connector.
Courtesy of FORD MOTOR COMPANY
3.

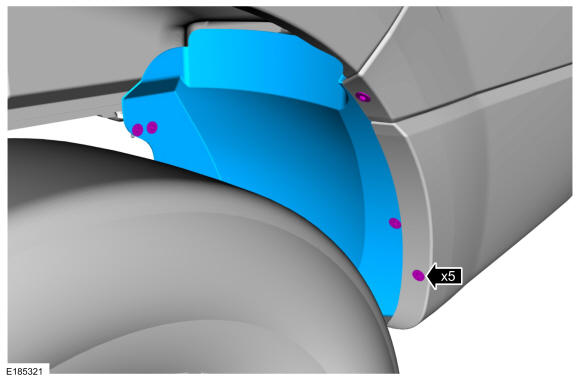

Install the LR splash shield, then install the LR splash shield retainers and tighten to 3.0 Nm (27 lb-in).
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
