Brake Shift Interlock Override - Floor Shift

This vehicle is equipped with a brake shift interlock system that prevents moving the selector lever from the PARK position. When the ignition switch is in the RUN position and the brake pedal is applied, the Brake Shift Interlock Actuator(BSIA) is energized.

Perform the following if the selector lever cannot be moved from PARK with the ignition switch in RUN and the brake pedal applied:

All vehicles

1. 1.

   Turn the ignition switch to the OFF position.

1. 2.

   Apply the park brake.

Expedition

1. 3.

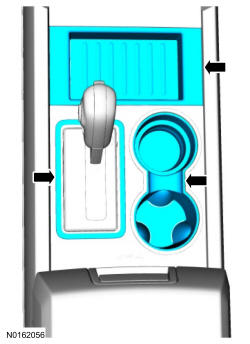

   Remove the selector lever trim ring, console tray and cup holder insert.

Courtesy of FORD MOTOR COMPANY

1. 4.

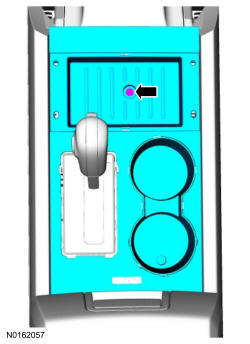

   Remove the screw and the console upper trim.

Courtesy of FORD MOTOR COMPANY

Navigator

1. 5.

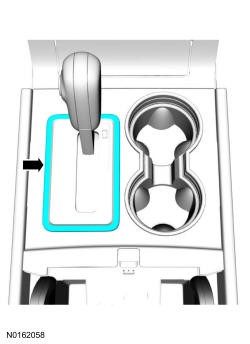

   Remove the selector lever trim ring.

Courtesy of FORD MOTOR COMPANY

1. 6.

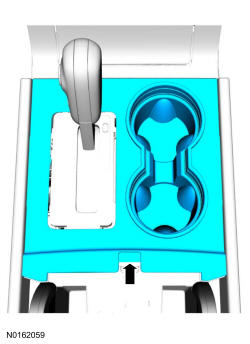

   NOTE: Using a suitable tool, lift and remove the floor console upper panel from the rear.

   Remove the floor console upper panel.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 7.

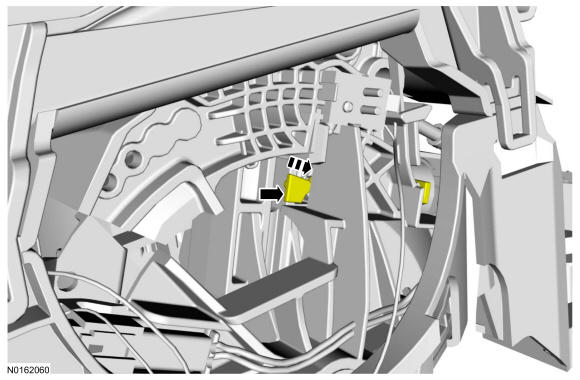

   Using a suitable tool, press the brake shift interlock override mechanism on the selector lever, apply the brake pedal, press the button on the selector lever and move the selector lever into NEUTRAL.
   • Press the override mechanism forward to release the BSIA.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Start the vehicle.

1. 9.

   To install, reverse the procedure.
