Transfer Case Control Module (TCCM): Removal

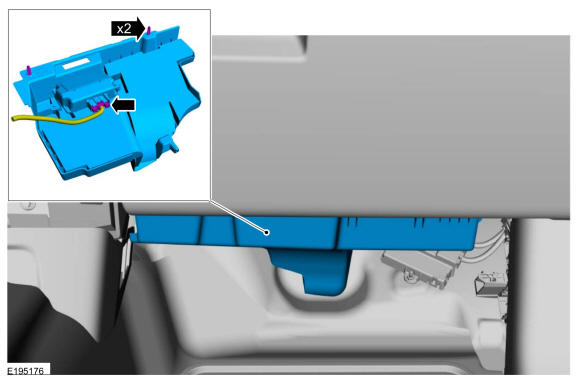

  1. Remove the CJB cover.
    GFD274054Courtesy of FORD MOTOR COMPANY

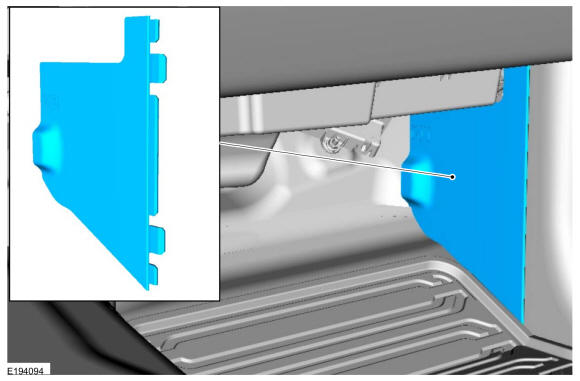

  2. Remove and disconnect the lower access panel.
    GFD274055Courtesy of FORD MOTOR COMPANY

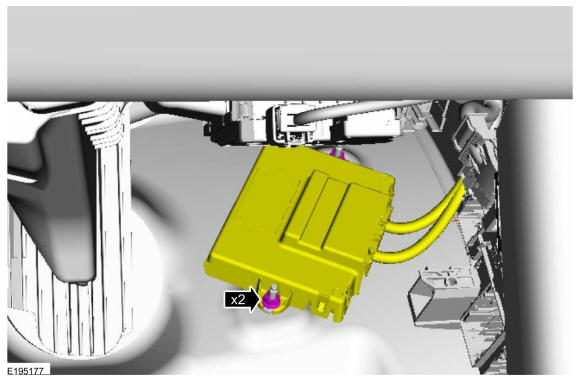

  3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

    Loosen the LH (Left-hand) TCCM nut and remove the RH (right-hand) TCCM nut.

    Torque

    : 62 lb.in (7 Nm)

    GFD274056Courtesy of FORD MOTOR COMPANY

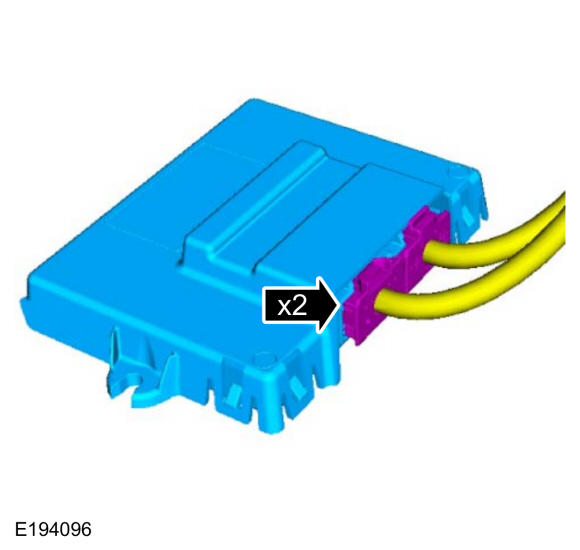

  4. Disconnect the electrical connectors and remove the TCCM.
GFD274057Courtesy of FORD MOTOR COMPANY
