Transfer Case Shift Motor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Disconnect the harness connector.
    GFD274058Courtesy of FORD MOTOR COMPANY
  3. Remove the coil wire pin from the electrical connector.

    1. Remove the inner retainer from the wire connector.
    2. Press the release tab and remove the coil wire pin.

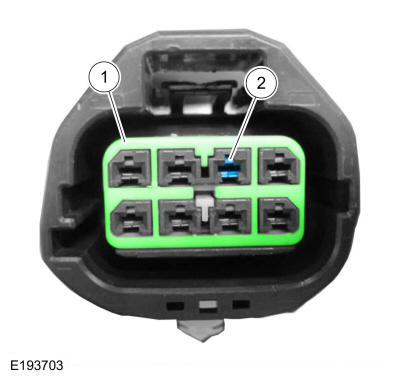

    GFD274059Courtesy of FORD MOTOR COMPANY
  4. Remove the transfer case shift motor bracket bolt.
    GFD274060Courtesy of FORD MOTOR COMPANY
  5. Remove the mounting bolts and the transfer case shift motor.
GFD274061Courtesy of FORD MOTOR COMPANY
