Accelerator Pedal: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

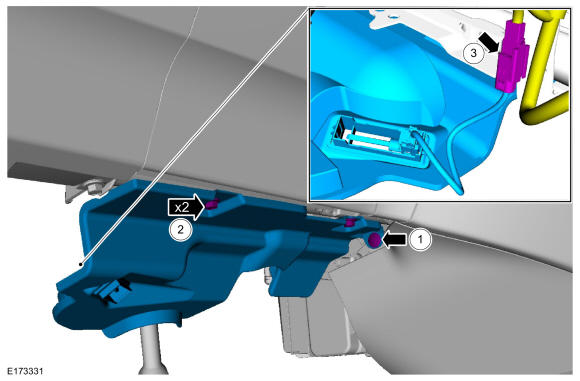

1. 1. Remove the push pin.
   2. Remove the retainers.

      Torque: 35 lb.in (4 Nm)

   3. Disconnect the electrical connector and remove the LH insulation panel.

   Courtesy of FORD MOTOR COMPANY

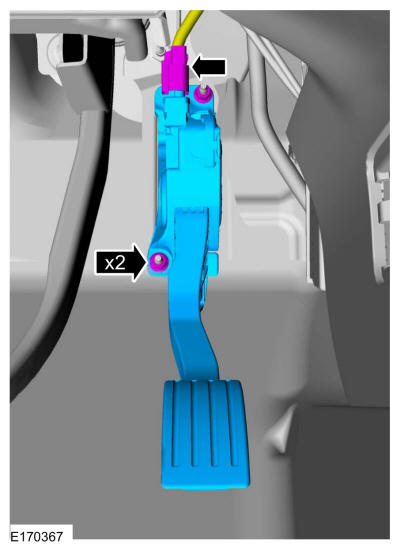

2. NOTE: To prevent setting DTC make sure the ignition is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

   Disconnect the electrical connector, remove the nuts and the accelerator pedal assembly.

   Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
