Camshaft Position (CMP) Sensor 3.5L GTDI: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Material

Item	Specification
Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada)	WSS-M2C946-A

NOTE: Lower radiator hose removed for clarity.

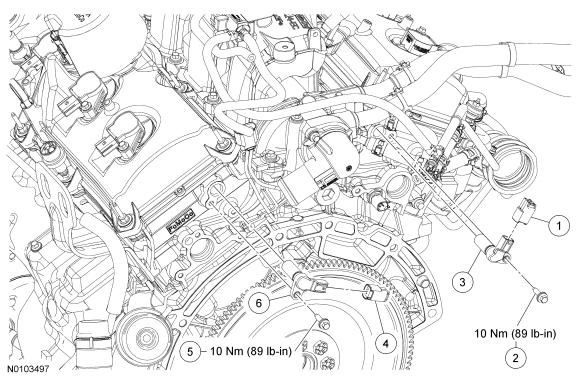

Fig 1: Camshaft Position (CMP) Sensor 3.5L GTDI With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	RH CMP sensor electrical connector
2	W503275	RH CMP sensor bolt
3	12K073	RH CMP sensor
4	14A464	LH CMP sensor electrical connector
5	W503275	LH CMP sensor bolt
6	12K073	LH CMP sensor
