Variable Camshaft Timing (VCT) Oil Control Solenoid 3.5L GTDI: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

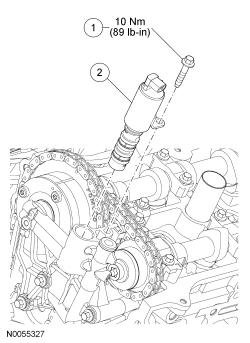

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid 3.5L GTDI With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500215	Variable Camshaft Timing (VCT) oil control solenoid bolt
2	6B297	VCT oil control solenoid
