Fuel Rail and Fuel Injector Exploded View
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

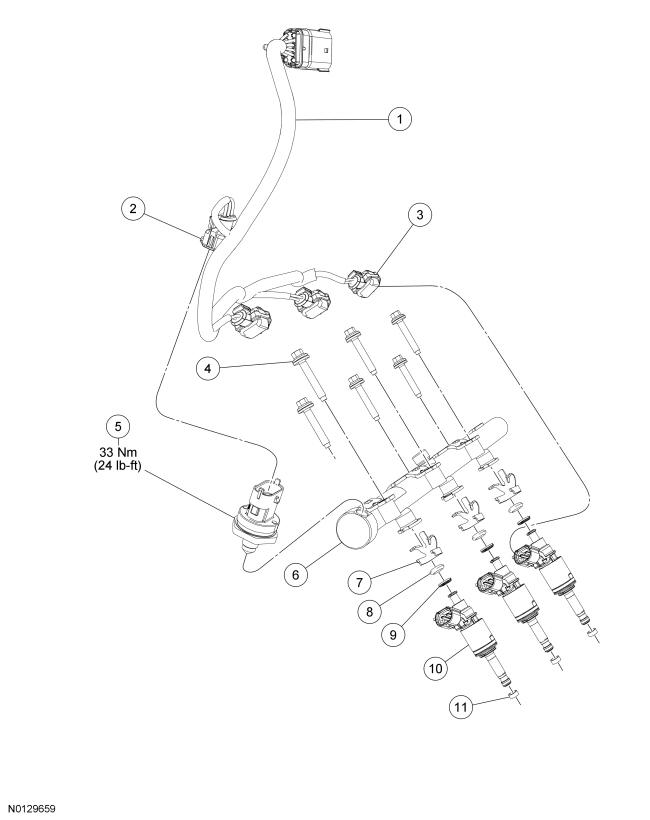

3.5L GTDI LH Fuel Rail and Fuel Injectors
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D930 | LH fuel charge wire harness |
| 2 | - | Fuel Rail Pressure (FRP) sensor electrical connector (part of 9D930) |
| 3 | - | Fuel injector electrical connector (part of 9D930) (3 required) |
| 4 | W503279 | Fuel rail bolt (6 required) |
| 5 | 9F972 | FRP sensor |
| 6 | 9D280 | LH fuel rail |
| 7 | 9C995 | Fuel injector clip (3 required) |
| 8 | - | Upper fuel injector O-ring seal (part of 9229) (3 required) |
| 9 | - | Fuel injector support disc (part of 9229) (3 required) |
| 10 | 9F593 | Fuel injector (3 required) |
| 11 | - | Lower fuel injector Teflon ® seal (part of 9229) (3 required) |

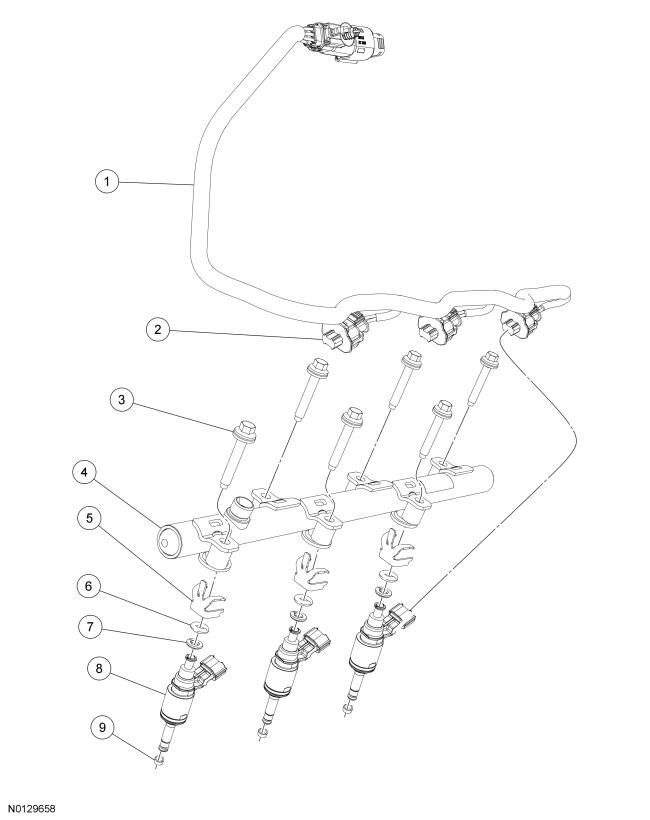

3.5L GTDI RH Fuel Rail and Fuel Injectors
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D930 | RH fuel charge wire harness |
| 2 | - | Fuel injector electrical connector (part of 9D930) (part of 12B637) (3 required) |
| 3 | W503279 | Fuel rail bolt (6 required) |
| 4 | 9D280 | RH fuel rail |
| 5 | 9C995 | Fuel injector clip (3 required) |
| 6 | - | Upper fuel injector O-ring seal (part of 9229) (3 required) |
| 7 | - | Fuel injector support disc (part of 9229) (3 required) |
| 8 | 9F593 | Fuel injector (3 required) |
| 9 | - | Lower fuel injector Teflon ® seal (part of 9229) (3 required) |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
