All Terrain Control Module (ATCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

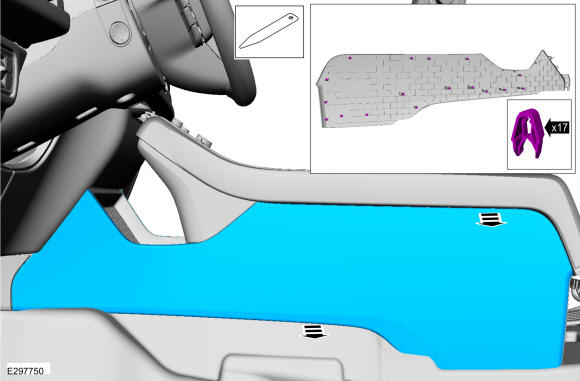

Release the retainers and remove the LH floor console side trim panel.. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release the retainers and remove the RH floor console side trim panel.. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

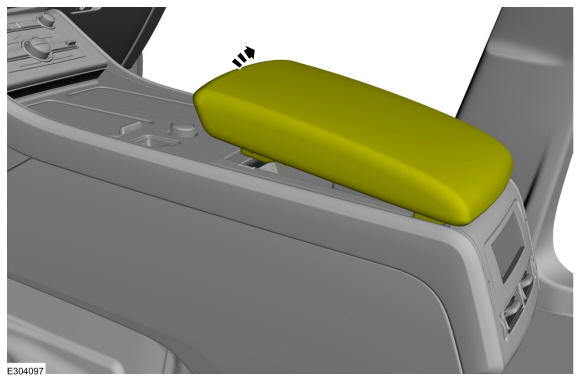

Open the center console arm rest panel.

Courtesy of FORD MOTOR COMPANY
Remove the FCIMB. Refer to: Front Controls Interface Module B (FCIMB) .

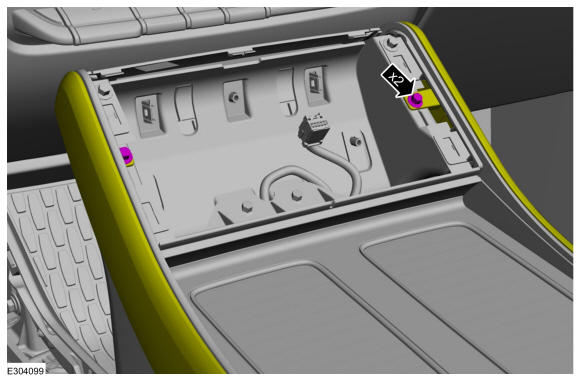

Remove both top console side panel bolts.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

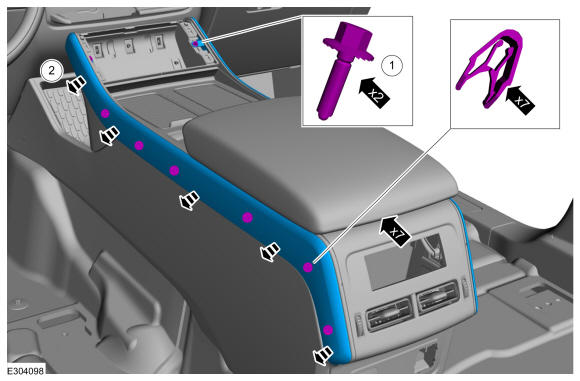

Remove both top console side trim panels.
- Remove the bolts.. Use the General Equipment: Interior Trim Remover
  Torque: 22 lb.in (2.5 Nm)
- Release the retainers and remove the RH and LH floor console side trim panels.
Courtesy of FORD MOTOR COMPANY

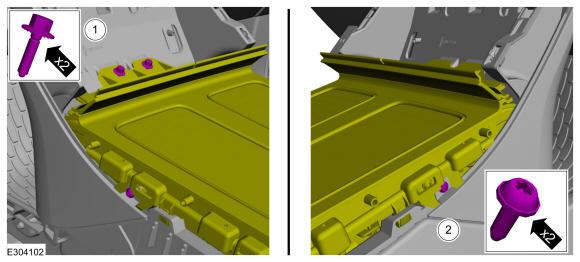

Remove both floor console bolts.
- Remove the bolts.
  Torque: 28 lb.in (3.2 Nm)
- Remove the screws.
  Torque: 17 lb.in (1.9 Nm)
Courtesy of FORD MOTOR COMPANY

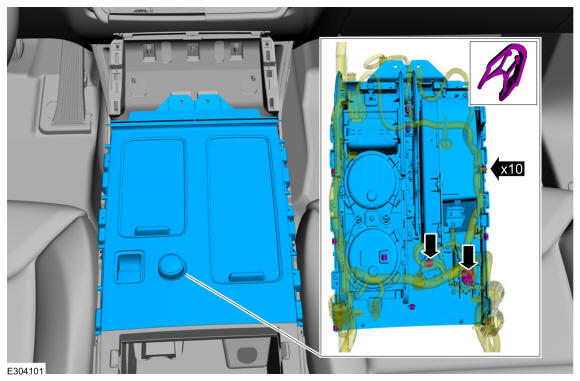

Release the clips, detach the console top panel, disconnect the electrical connectors and remove the console top panel.

Courtesy of FORD MOTOR COMPANY

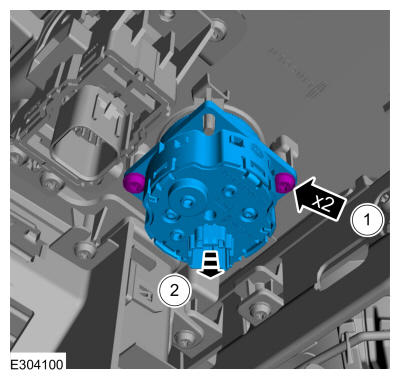

Remove the module.
1. Remove the screws.
2. Remove the switch.
  Torque: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY
