Direct Injection Fuel Rail LH: Removal

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
Remove the cowl panel. Refer to: Cowl Panel .
Remove the intake manifold. Refer to: Intake Manifold .
NOTE: To release the fuel pressure in the fuel rail to fuel rail high-pressure fuel tube, wrap the fuel rail to fuel rail high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the fuel rail to fuel rail high-pressure fuel tube flare nuts.

Disconnect the fuel rail to fuel rail high-pressure fuel tube flare nuts, then remove and discard the high-pressure fuel tube.

Courtesy of FORD MOTOR COMPANY

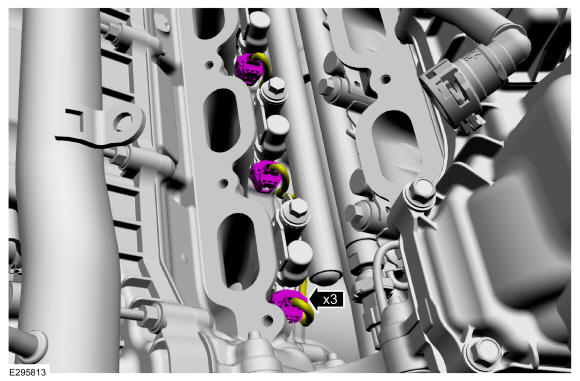

Disconnect the fuel injector harness retainer.

Courtesy of FORD MOTOR COMPANY
Disconnect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, the block and the general surrounding area of the fuel rail and the injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

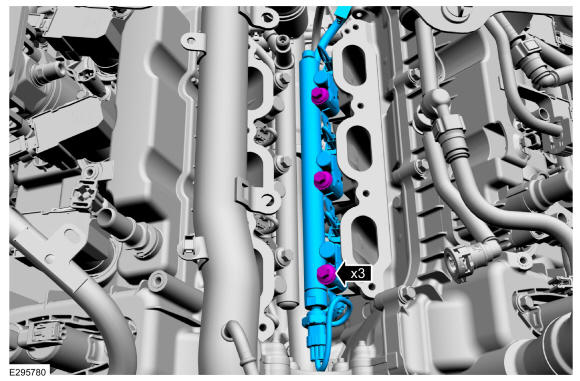

Remove the fuel rail bolts, then remove the fuel rail.

Courtesy of FORD MOTOR COMPANY

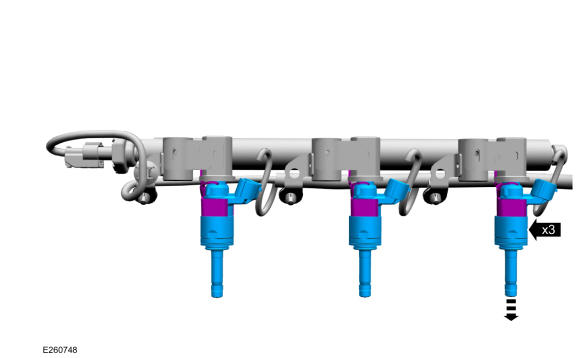

Remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY
Remove and discard the fuel injector clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

NOTE: Commercially available OTC 5028 8-1/2" long slide hammer may be substituted for 307-005 where there are clearance concerns.

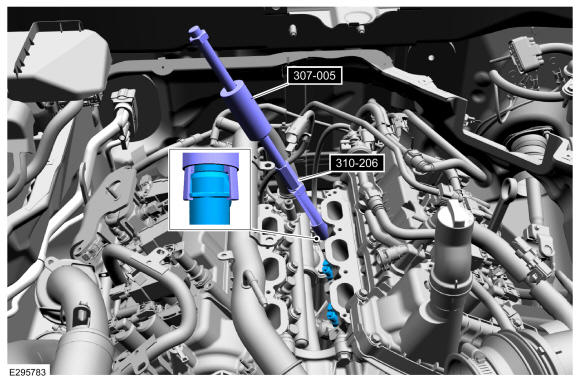

Using the special tools, remove any of the fuel injectors that remained in the cylinder head.

Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer., 310-206 Remover, Fuel Injector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

NOTE: Do not use compressed air to clean the tip of the fuel injector.

NOTE: Do not use a brush to clean the tip of the fuel injector.

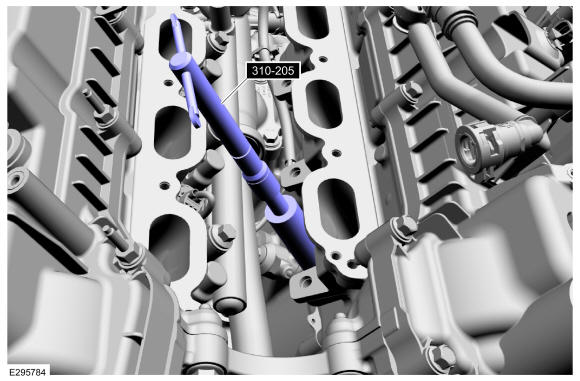

Using the special tool, clean the cylinder head fuel injector bores.

Use Special Service Tool: 310-205 Fuel Injector Brush.

Courtesy of FORD MOTOR COMPANY
