Fuel Pump Driver Module (FPDM): Installation

All Vehicles

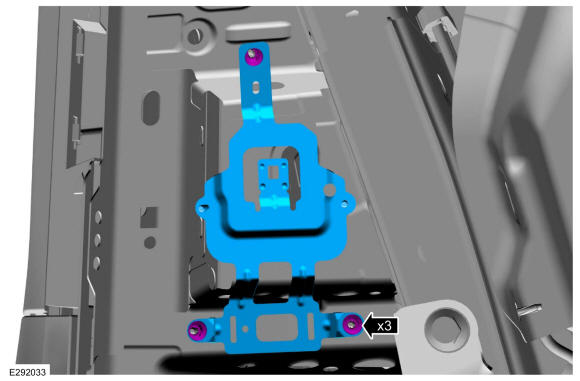

1. Install the fuel pump driver module bracket if removed, then install and tighten the fasteners.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

   Heavy duty fuel pump driver module

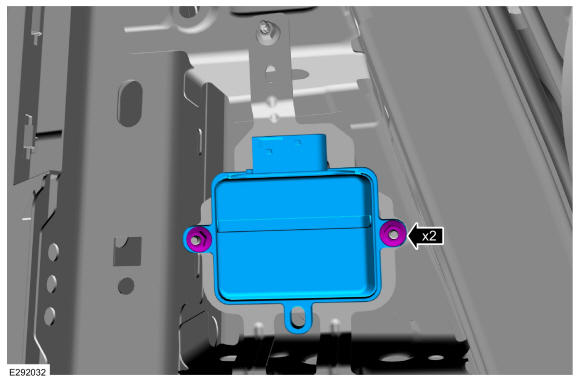

2. Install the fuel pump driver module, then install and tighten the fuel pump driver module fasteners.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

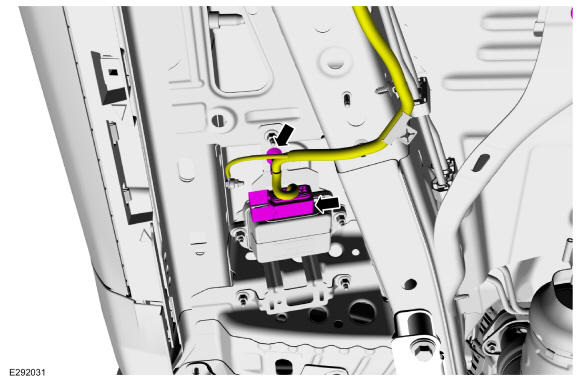

3. Connect the fuel pump driver module electrical connector, then connect the wire harness retainer.

   Courtesy of FORD MOTOR COMPANY

   Standard fuel pump driver module

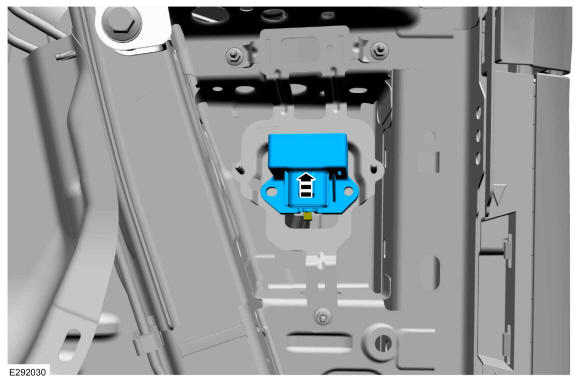

4. Install the fuel pump driver module to the bracket until it clicks into position.

   Courtesy of FORD MOTOR COMPANY

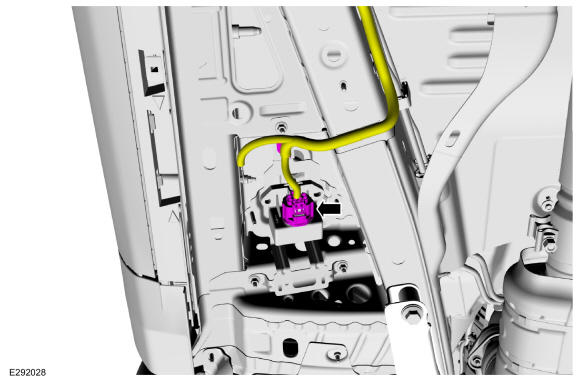

5. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

   All Vehicles

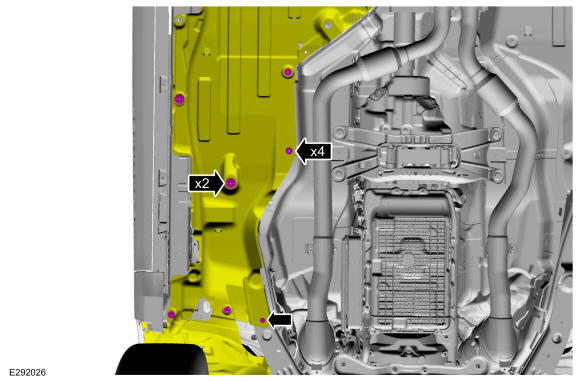

6. NOTE: The shield needs to be installed underneath the fender splash shield.

   If equipped, install the shield, then install and tighten the fasteners.

   Torque: 1, tighten to: : 22 lb.in (2.5 Nm) 2, tighten to: : 53 lb.in (6.0 Nm) 3, tighten to: : 53 lb.in (6.0 Nm)

   Courtesy of FORD MOTOR COMPANY

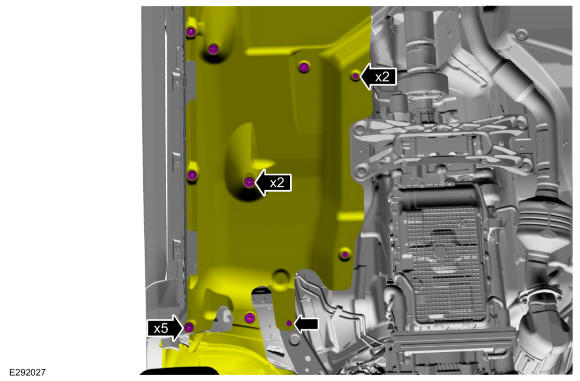

7. NOTE: The shield needs to be installed underneath the fender splash shield.

   If equipped, install the shield, then install and tighten the fasteners.

   Torque:

   Screw and washer, tighten to: : 22 lb.in (2.5 Nm)

   Nut and washer tighten to: : 53 lb.in (6.0 Nm)

Courtesy of FORD MOTOR COMPANY
