High-Pressure Fuel Pump: Removal

All Vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
3. Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
4. Remove the cowl panel. Refer to: Cowl Panel .
5. Remove the intake manifold. Refer to: INTAKE MANIFOLD
6. With hybrid engine only, remove the wire harness retaining nut and move the harness out of the way.

   Courtesy of FORD MOTOR COMPANY

7. Detach the coolant hose retainer.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

   Remove the fuel injection pump noise insulator.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the high-pressure fuel tube flare nuts.

   Remove the high-pressure fuel tube bracket nuts. Disconnect the high-pressure fuel tube flare nuts, then remove and discard the high-pressure fuel tube.

   Courtesy of FORD MOTOR COMPANY

10. Remove the high-pressure fuel pump shield nuts.

    Courtesy of FORD MOTOR COMPANY

    U625 Explorer

11. Remove the high-pressure fuel pump shield bolt, then remove the shield.

    Courtesy of FORD MOTOR COMPANY

12. Disconnect the high-pressure fuel pump fuel feed spring lock coupling.

    Courtesy of FORD MOTOR COMPANY

    U611 Aviator

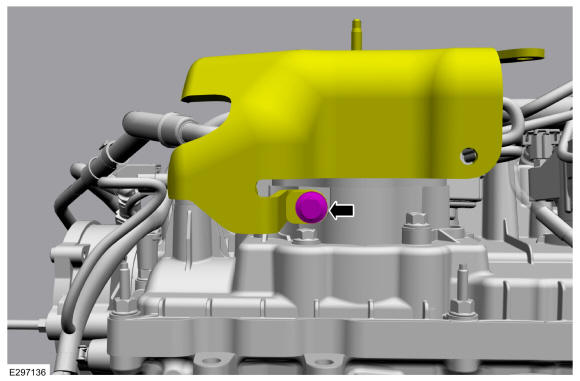

13. Remove the high-pressure fuel pump shield bolt, then position the shield up and out of the way.

    Courtesy of FORD MOTOR COMPANY

14. Disconnect the high-pressure fuel pump fuel feed spring lock coupling, then remove the high-pressure fuel pump shield.

    Courtesy of FORD MOTOR COMPANY

    All Vehicles

15. Alternately loosen the high-pressure fuel pump nuts one complete revolution at a time and remove, then remove the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

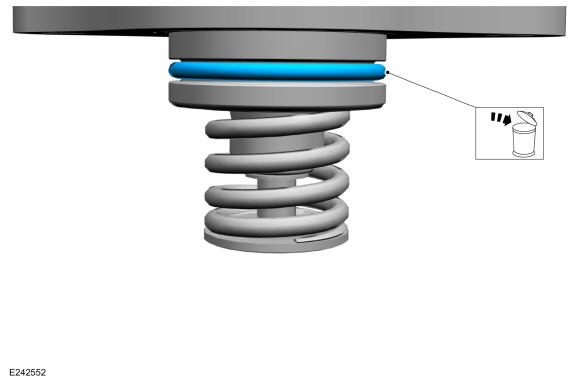

16. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

17. Remove the high-pressure fuel pump roller tappet.

    Courtesy of FORD MOTOR COMPANY

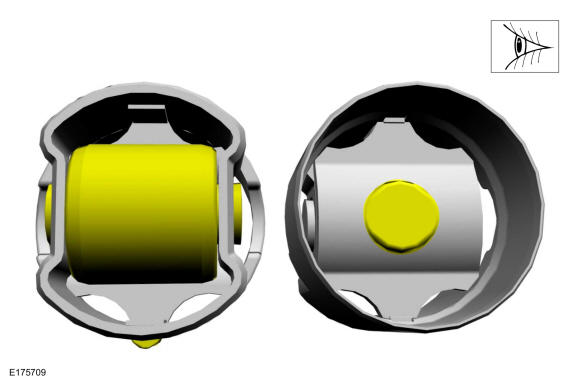

18. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

19. If needed, remove the high-pressure fuel pump mounting studs.

Courtesy of FORD MOTOR COMPANY
