Throttle Body: Installation
NOTE:

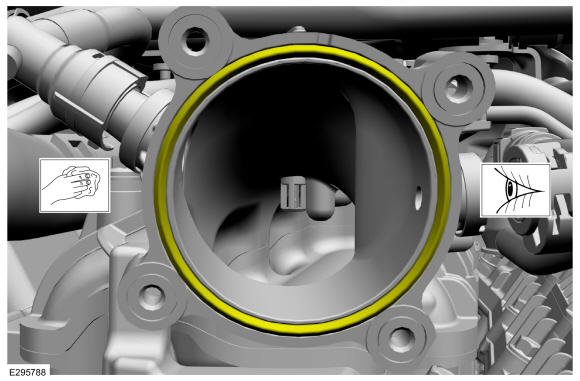

Make sure that the mating faces are clean and free of foreign material.
- Inspect the throttle body gasket, clean and replace the gasket as needed.

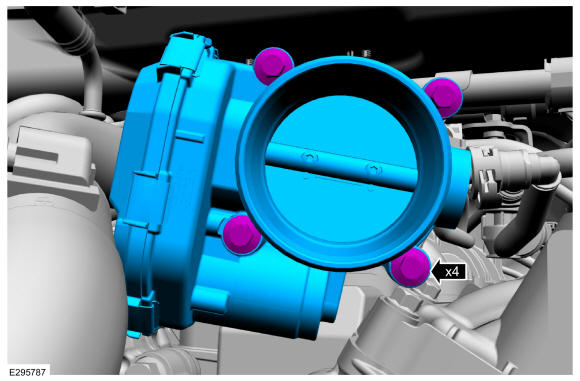

- Install the throttle body, then install and tighten the throttle body bolts.
Torque: 89 lb.in (10 Nm)
-

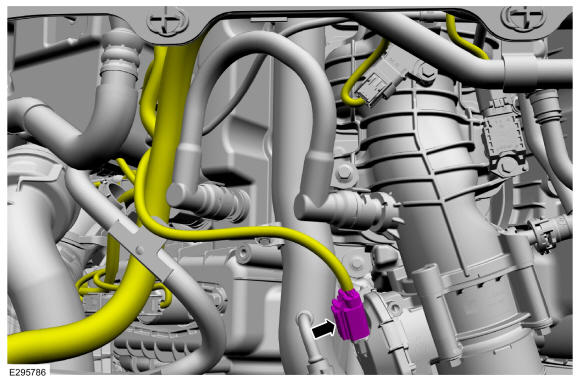

NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.
Connect the throttle body electrical connector.

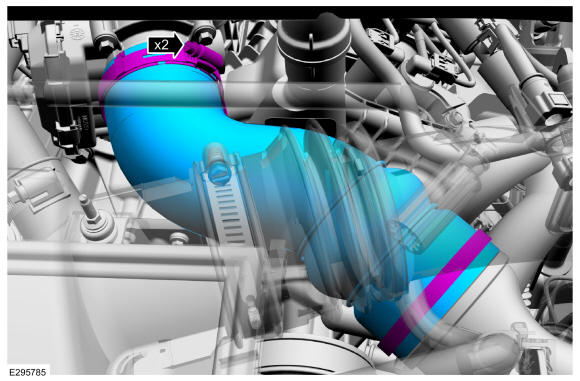

- Install the charge air cooler outlet pipe, then tighten the clamps.
Torque: 44 lb.in (5.0 Nm)
