Ignition Coil-On-Plug: Installation

Both sides

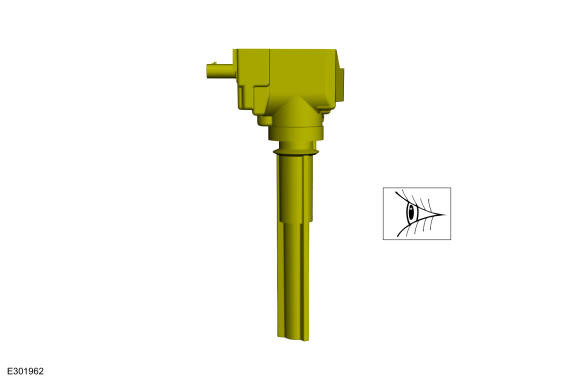

Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assemblies.

Courtesy of FORD MOTOR COMPANY

Right side
Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

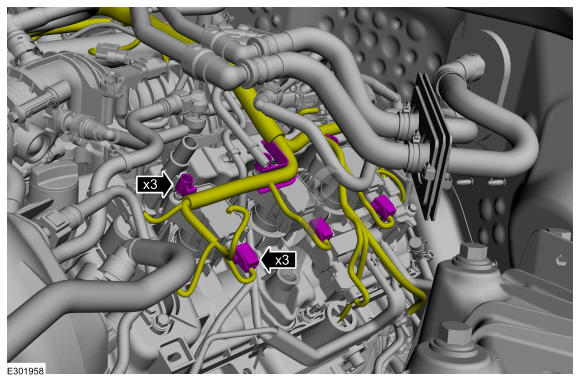

Connect the ignition coil-on-plug electrical connectors, then attach the electrical harness retainers to the ignition coil-on-plug studbolts.

Courtesy of FORD MOTOR COMPANY

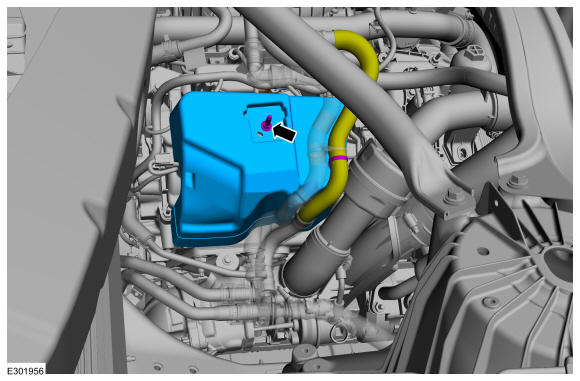

Install the fuel pump cover, attach the hose tag, tighten the nut.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Left side

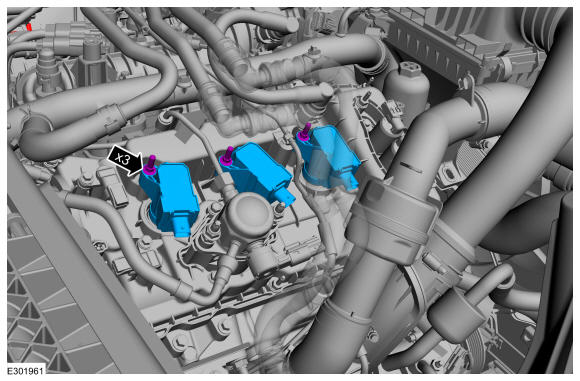

Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

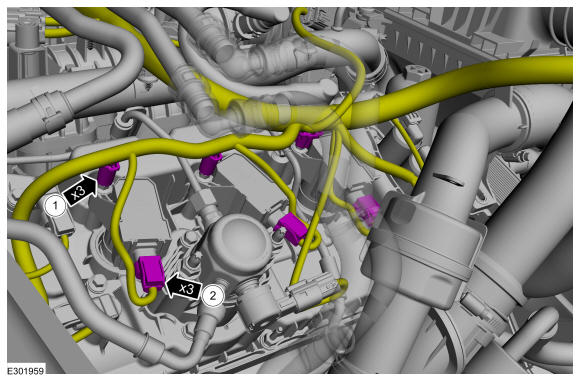

Attach the wire harness retainers to the studbolts, and connect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY

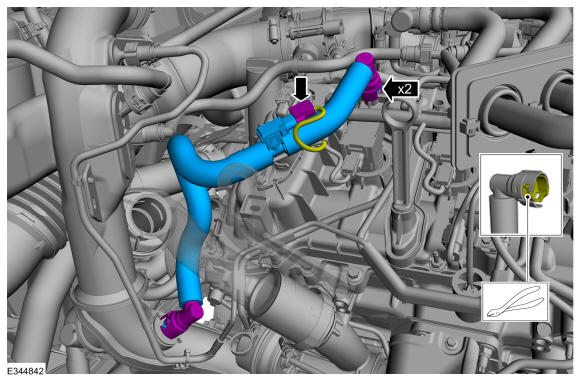

- Install the crankcase vent tube. If the crankcase vent tube was previously discarded, install a new crankcase vent tube.
- If the replacement crankcase vent tube part comes with no crankcase pressure sensor, reprogram the PCM. Refer to: Module Programming .
- If the replacement crankcase vent tube came without a crankcase pressure sensor, tape the wiring harness electrical connector back to the wiring harness.
- If the replacement crankcase vent tube comes with a crankcase pressure sensor, connect the wiring harness electrical connector.
Courtesy of FORD MOTOR COMPANY

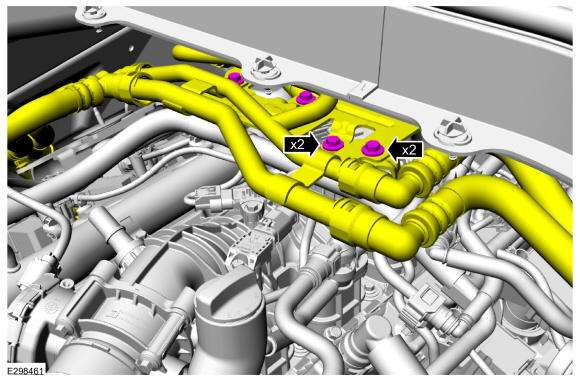

- Install the coolant pipe bracket retaining bolts.
  Torque: 97 lb.in (11 Nm)
- Install the intake manifold bracket retaining bolts.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

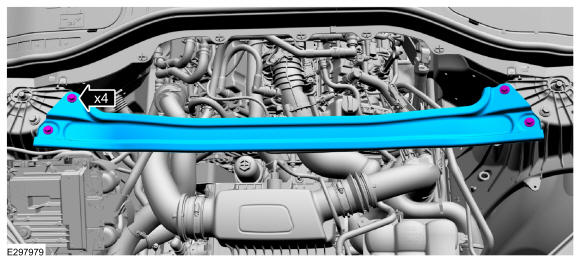

Install the suspension support bar and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

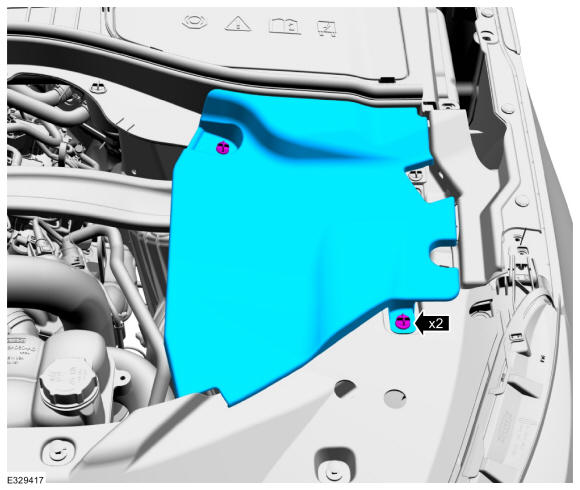

Install the retainers and the LH side engine compartment cover.

Courtesy of FORD MOTOR COMPANY

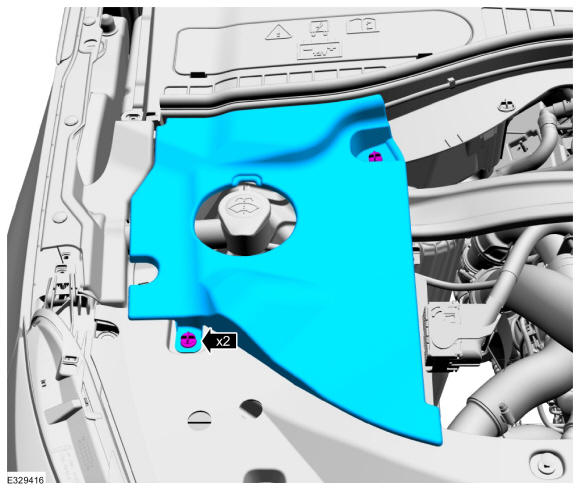

Install the retainers and the RH side engine compartment cover.

Courtesy of FORD MOTOR COMPANY
