Spark Plugs: Installation

NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

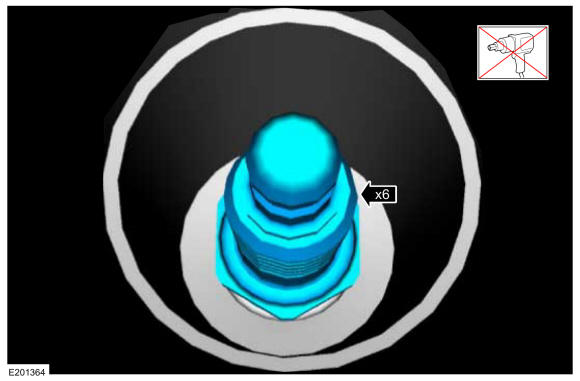

Install and tighten the spark plugs.

Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Install the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
