Gear Shift Module (GSM): Removal
- Remove the driver knee air bag. Refer to: Driver Knee Airbag .
- Remove the floor console. Refer to: Floor Console .

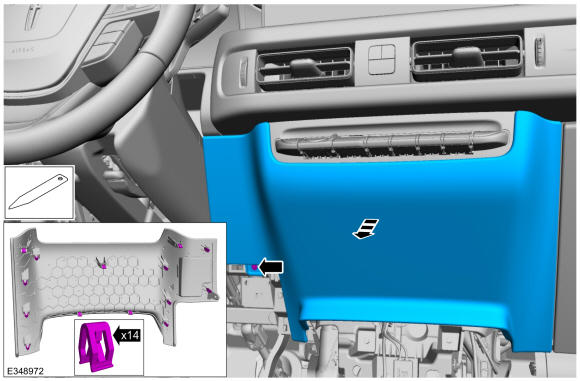

- Remove the screw, release the clips and remove the lower center instrument panel trim panel. Use the General Equipment: Interior Trim Remover

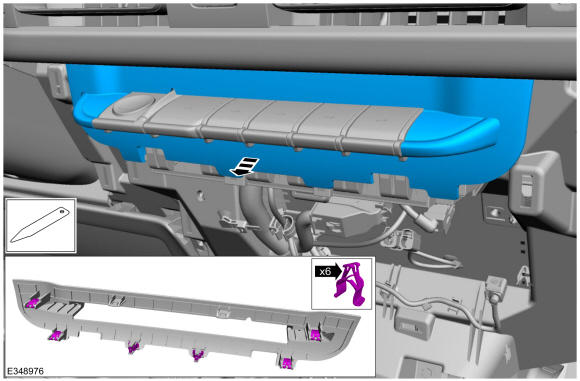

- Release the clips and remove the GSM finish panel.
- Remove the screws and the GSM.

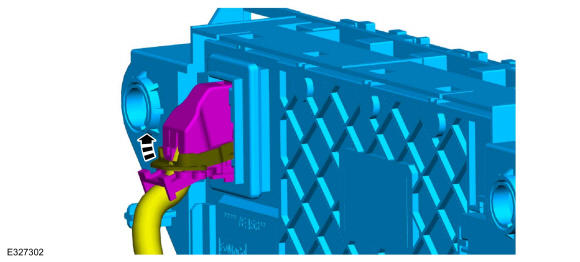

- Disconnect the GSM electrical connector.
