Gear Shift Module (GSM): Installation

  1. To install, reverse the removal procedure.

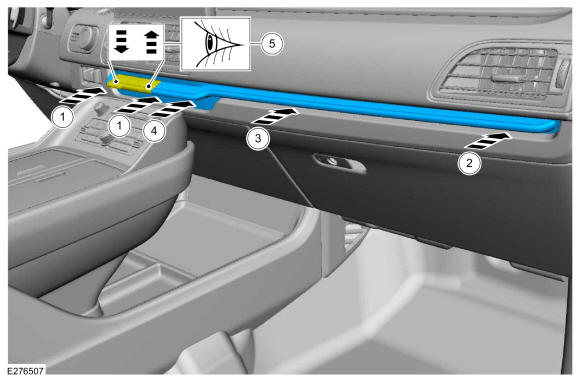

    1. Seat both sides of the ambient light bar around the GSM.
    2. Seat the passenger side of the ambient light bar.
    3. Seat the center right of the ambient light bar.
    4. Seat the center left of the ambient light bar.
    5. Verify the P and D buttons move up and down freely.
GFD544188Courtesy of FORD MOTOR COMPANY
