All Terrain Control Module (ATCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

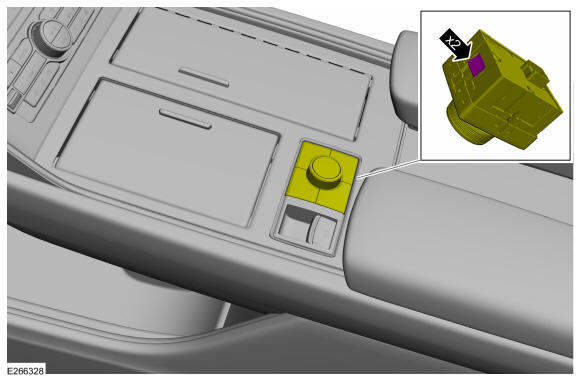

- Carefully pry the MSS from the center floor console panel.. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

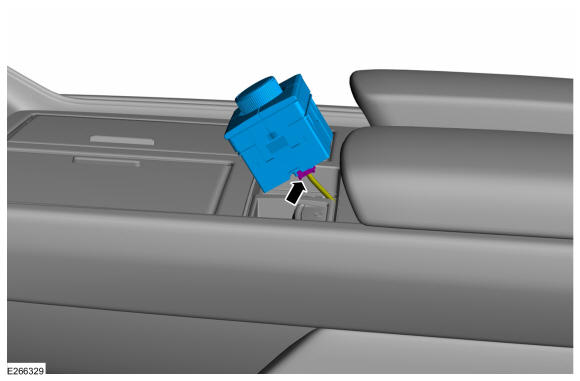

- Disconnect the MSS harness connector and remove the switch.
 Courtesy of FORD MOTOR COMPANY
|
