Steering Column - Remove For Access

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

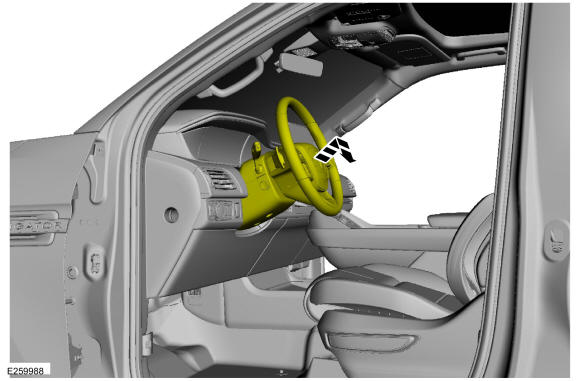

2. Fully extend and lower the steering column.

   Courtesy of FORD MOTOR COMPANY

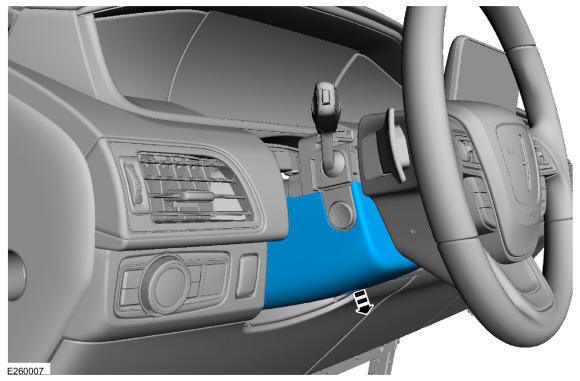

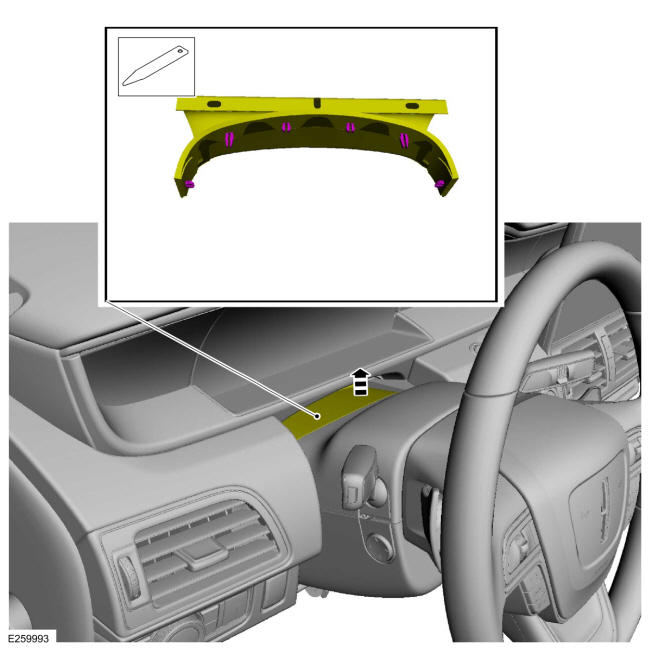

3. Release the tabs and position the gap hider aside. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

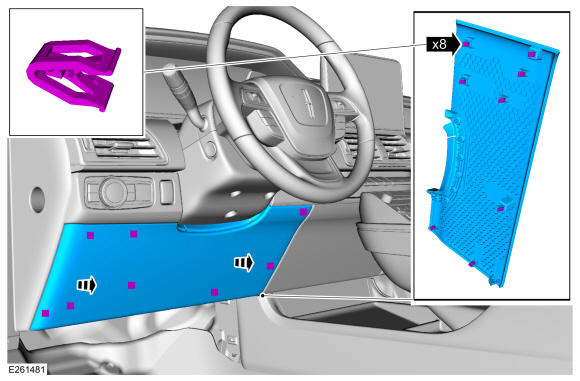

4. Remove the steering column opening trim panel.

   Courtesy of FORD MOTOR COMPANY

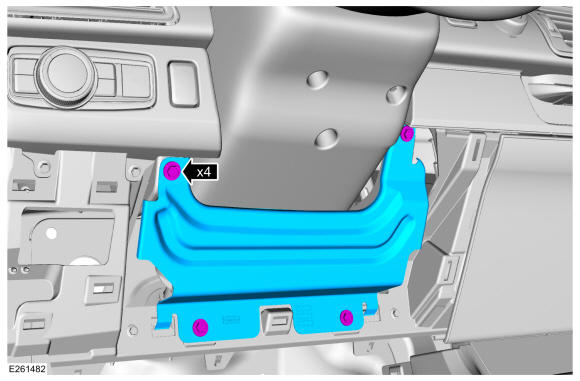

5. Remove the bolts and the steering column reinforcement panel.

   Courtesy of FORD MOTOR COMPANY

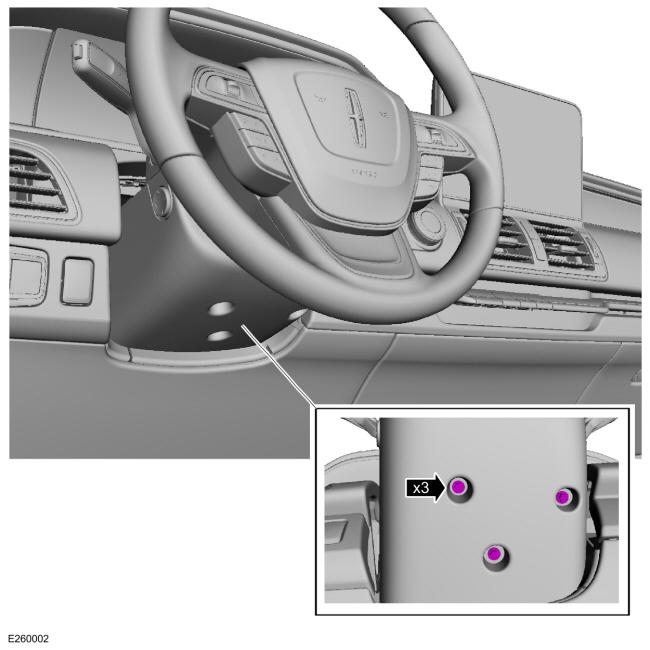

6. Remove the lower steering column shroud bolts.

   Courtesy of FORD MOTOR COMPANY

7. Remove the lower steering column shroud.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Vehicle equipped with power adjustable steering column shown, others similar.

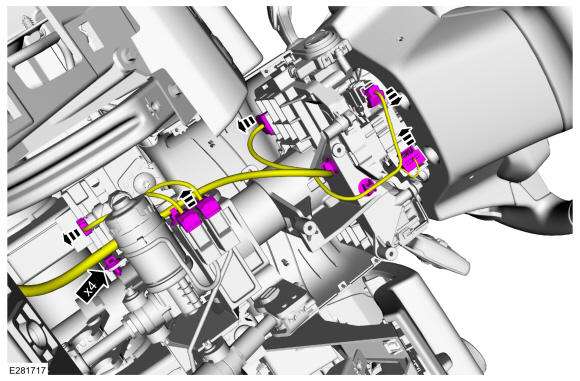

   Disconnect the steering column harness electrical connectors, detach the clips and position the steering column harness aside.

   Courtesy of FORD MOTOR COMPANY

9. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
   NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

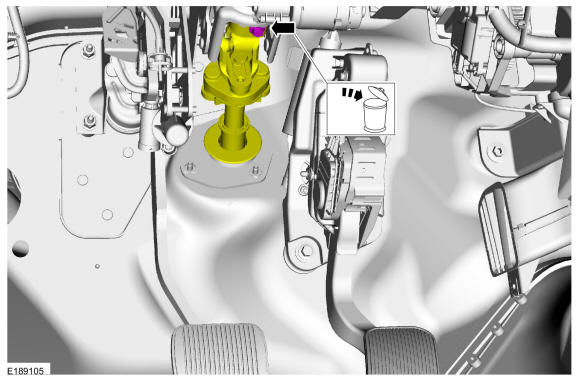

   Remove and discard the bolt and disconnect the upper steering column shaft.

   Courtesy of FORD MOTOR COMPANY

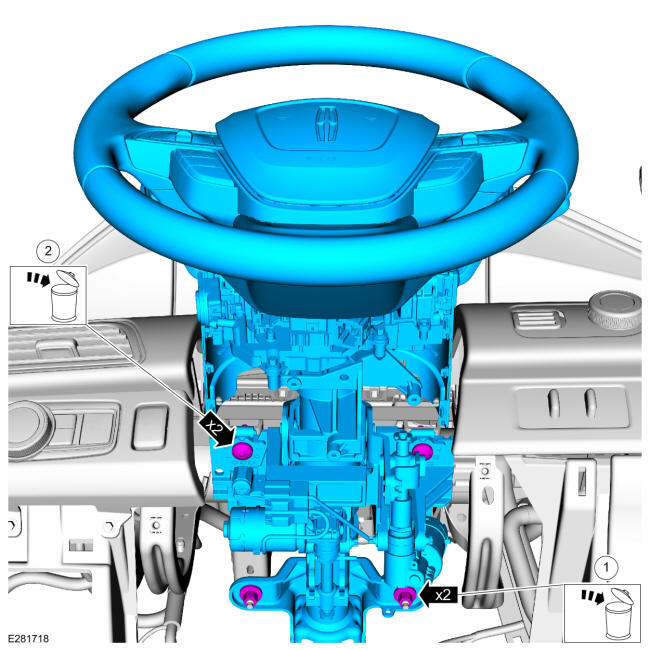

10. 1. Remove and discard the steering column mounting nuts.
    2. Remove and discard the steering column mounting bolts and remove the steering column.

Courtesy of FORD MOTOR COMPANY
