Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: High series heated steering wheel shown, all others similar.

NOTE: Make sure the wheels are in the straight ahead position.

Remove the driver airbag module. Refer to: Driver Airbag .

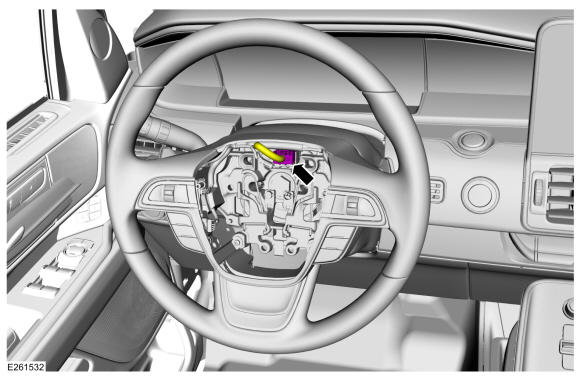

Disconnect the steering wheel electrical connector.

Courtesy of FORD MOTOR COMPANY

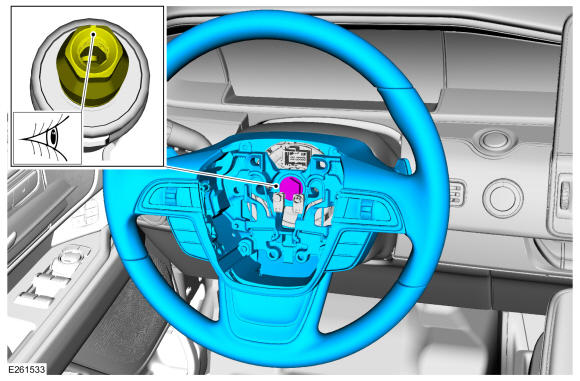

NOTE: Make sure the tick-mark on the end of the steering column shaft is on the top position.

Remove the steering wheel bolt and the steering wheel.

Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

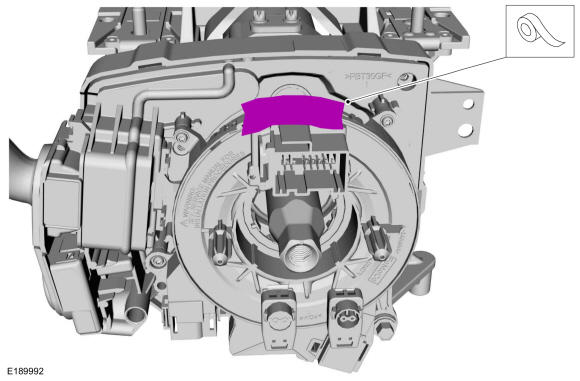

Tape the clockspring rotor to the outer housing to keep it from rotating.

Courtesy of FORD MOTOR COMPANY
