Brake Shift Interlock Override Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

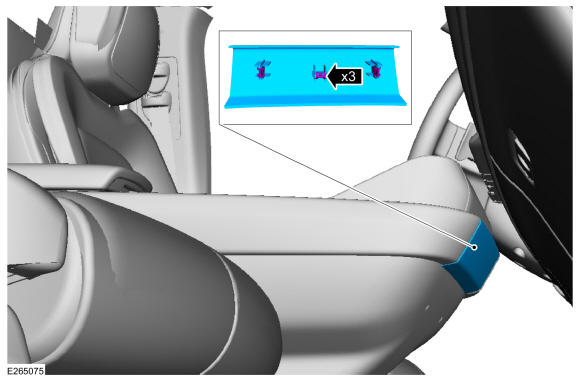

  1. Remove the console front trim panel.
    GFD544180Courtesy of FORD MOTOR COMPANY

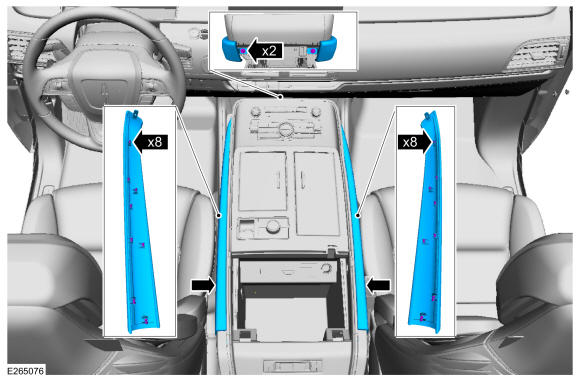

  2. Remove the screws and the console side trim panels.
    GFD544181Courtesy of FORD MOTOR COMPANY

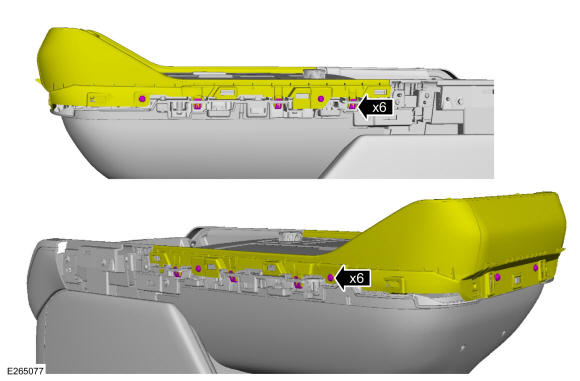

  3. Remove the screws and position the HVAC controls and trim panel aside.
    GFD544182Courtesy of FORD MOTOR COMPANY

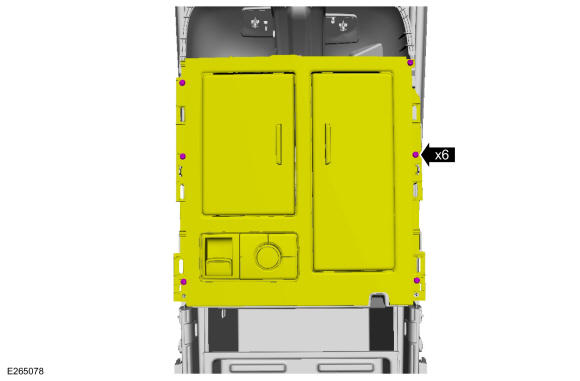

  4. Remove the screws and position the console center panel aside.
    GFD544183Courtesy of FORD MOTOR COMPANY

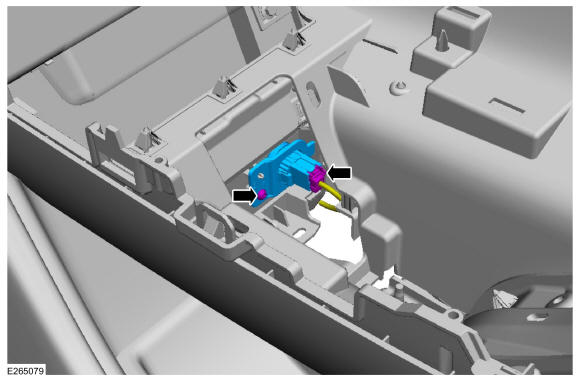

  5. Disconnect the electrical connector and remove the screw and the brake shift interlock override switch.
GFD544184Courtesy of FORD MOTOR COMPANY
