Second Row Blower Motor Control Module: Removal

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the floor console. Refer to: Floor Console .

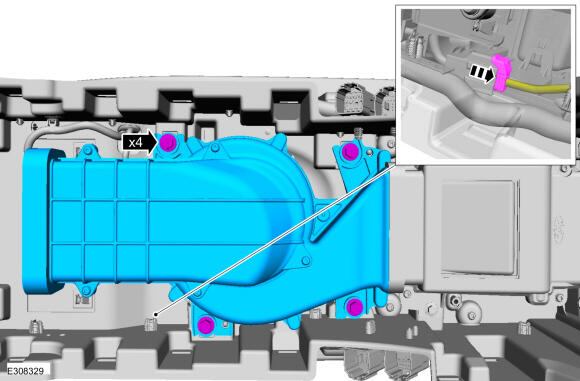

Remove the bolts the front duct article.
Torque: 2.77 Nm

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the second row blower motor control module.
- Disconnect the electrical connector.
  Torque: 8.0 Nm

Courtesy of FORD MOTOR COMPANY
