Hold-In Winding

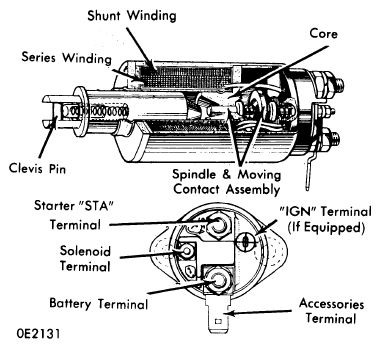

Connect ohmmeter between small unmarked terminal of solenoid and a good ground on solenoid body. If resistance is not within specifications, hold-in (shunt) winding is bad and solenoid should be replaced.
Resistance Specifications (Ohms)
| Application | Pull-in Winding | Hold-In Winding | |
|---|---|---|---|
| Sol. Model 9S (1963-71) | .40-.46 | 1.10-1.35 | |
| Sol. Model 10S (1963-71) | .36-.42 | 1.49-1.71 | |
| Austin Marina (1973) | ..... | 1.01-1.07 | |
| Jaguar 6 &V12 (1972-73) | 36-.42 | 1.49-1.71 | |
| MGB-GT (1972-73) | .13.15 | .67-.73 | |
| Triumph 6 &V8 (1972-73) | |||
| M418G | .13.15 | .63-.73 | |
| 2M100 | .25-.27 | .76-.80 | |
