Thermal Reactor

Check for damage or cracks. Remove air hose leading to air control valve, insert finger into valve and make sure non-return valve works smoothly. Start engine and make sure that there are no major exhaust gas leaks from the cooling air injection pipe of the thermal reactor.

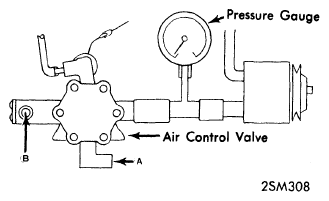

Fig 1: Testing Air Control Valve
G09355114Courtesy of MAZDA MOTORS CORP.
