MITSUBISHI Regulators: Adjustment

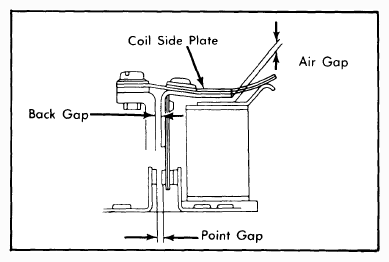

Adjust voltage of the constant voltage relay by bending end of coil side plate up or down as shown in illustration. If plate is bent up, the adjusted value becomes higher. If it is bent down, value becomes lower. Adjust pilot lamp relay by same method.
MITSUBISHI ALTERNATOR REGULATOR SPECIFICATIONS
| Reg. No. | VOLTAGE REGULATOR | PILOT LAMP RELAY | |||||
|---|---|---|---|---|---|---|---|
| Output Volts | Air Gap in. (mm) | Back Gap in. (mm) | Point Gap in. (mm) | Air Gap in. (mm) | Back Gap in. (mm) | Point Gap in. (mm) | |
| RQB2220D | 14.3-15.8 | .032-.047 (.81-1.2) | 032-.043 (.81-1.1) | 0.12-.016 (.31-.41) | 035.047 (.89-1.2) | 030-.043 (.76-1.1) | 030-.043 (.76-1.1) |
| 045318391 | 13.5-14.5 | .028-.051 (.71-1.3) | 028-.059 (.71-1.5) | 012-.018 (.31-.45) | 035-.055 (.89-1.4) | 028-.059 (.71-1.5) | 028-.043 (.71-1.1) |
| D27Z-A | 14-15 | ..... | ..... | ..... | ..... | ..... | ..... |
