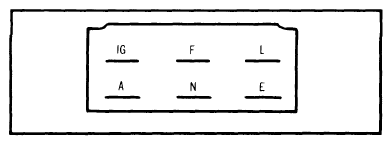

MITSUBISHI Regulators: Adjustment
NOTE:
Adjustment procedures furnished for Mazda only. Manufacturers recommend installation of new regulator when tolerance not within limits for other models.

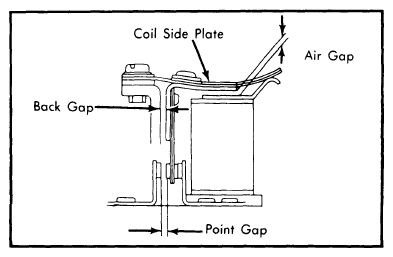

Adjust voltage of the constant voltage relay by bending end of coil side plate up or down as shown in illustration. If plate is bent up, the adjusted value becomes higher. If it is bent down, value becomes lower. Adjust pilot lamp relay by same method.
MITSUBISHI ALTERNATOR REGULATOR SPECIFICATIONS
| Reg. No. | VOLTAGE REGULATOR | PILOT LAMP RELAY | |||||
|---|---|---|---|---|---|---|---|
| Output Volts | Air Gap in. (mm) | Back Gap in. (mm) | Point Gap in. (mm) | Air Gap in. (mm) | Back Gap in. (mm) | Point Gap in. (mm) | |
| 045318391 | 14-15 | .028-.051 (.71-1.3) | .028-.059 (.71-1.5) | .012-.018 (.31-.45) | .039-.059 (1.0-1.5) | .028-.059 (.71-1.5) | .020-.035 (.71-1.1) |
