1975-76 Models (Retard)

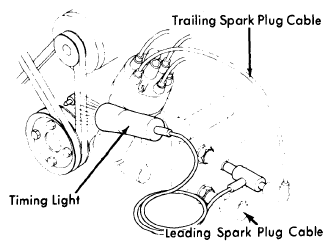

- Connect timing light to trailing (lower) spark plug on front rotor housing. Connect jumper wires to primary lead wire terminals. See Fig 1.
- Start engine and check retard timing. If timing is incorrect, loosen external adjusting lever set screw. Move lever until correct specification is obtained and tighten set screw.
1975 IGNITION TIMING SPECIFICATIONS
| Application | Timing | |
|---|---|---|
| Leading | TDC | |
| Trailing | 15°ATDC | |
| Retard Side | ||
| RX3 & RX4 | 20°ATDC | |
1976 IGNITION TIMING SPECIFICATIONS
| Application | Timing | |
|---|---|---|
| Leading | ||
| RX3 | TDC | |
| All Others | 5°ATDC | |
| Trailing | 15°ATDC | |
| Retard | 20°ATDC | |
