Wiring Diagrams: Wiring Diagram

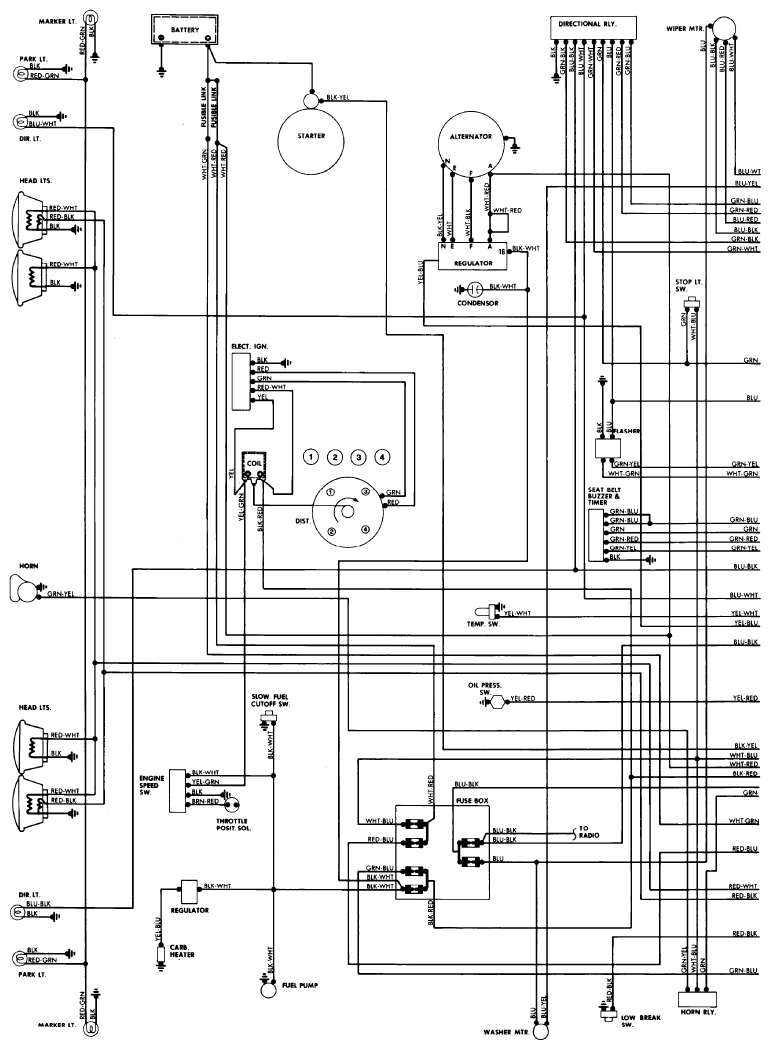

Fig 1: Wiring Diagram - B2000 Pickup (1 of 2)
G09303768Courtesy of MAZDA MOTORS CORP.

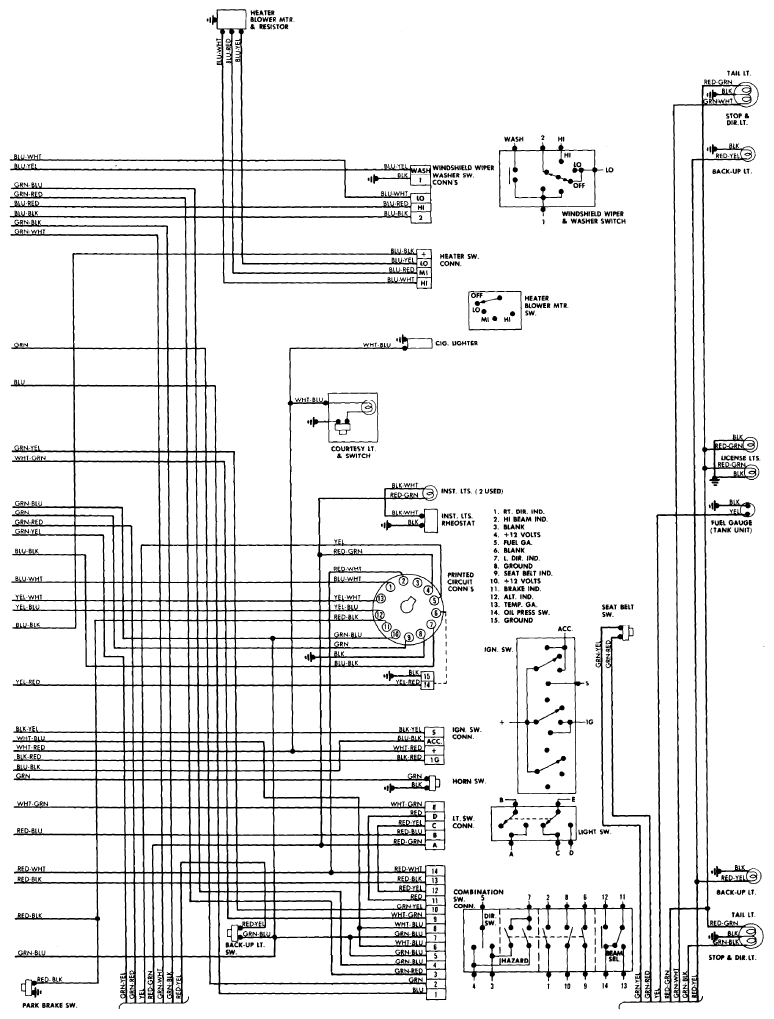

Fig 2: Wiring Diagram - B2000 Pickup (2 of 2)
G09303769Courtesy of MAZDA MOTORS CORP.
