Hot Idle COMPENSATOR

When vehicle is at rest or air temperature is normal, detach air hose from intake manifold and try to suck air through it. No air should pass. If temperature is above 152°F (67°C) at air cleaner, air should pass. If not, replace compensator.

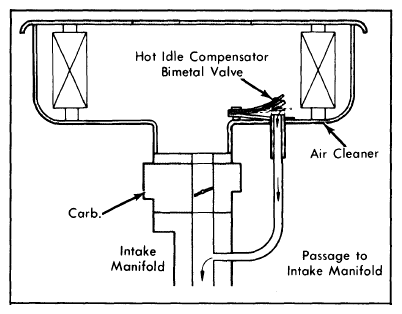

Fig 1: Hot Idle Compensator Valve Location
G09310034Courtesy of MAZDA MOTORS CORP.
