Spark Delay Timing Control System: Description: 626

This system consists of a water thermo valve which prevents vacuum advance until engine coolant temperature reaches 129°F (54°C).

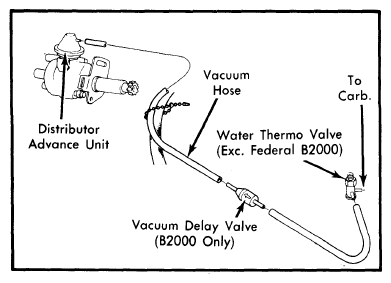

Fig 1: Schematic of Mazda 626 and B2000 Spark Delay Timing Control System

Courtesy of MAZDA MOTORS CORP.
