Wiper Switch: Installation

To install, reverse removal procedure.

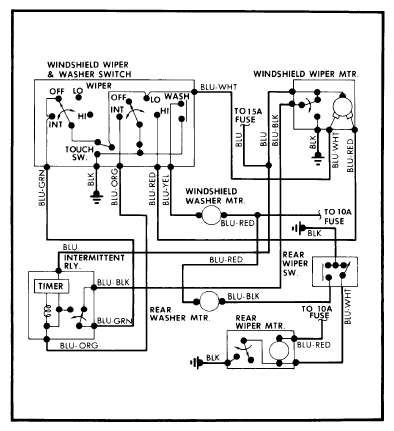

Fig 1: Mazda GLC Hatchback Wiring Diagram

G09323030

Courtesy of MAZDA MOTORS CORP.

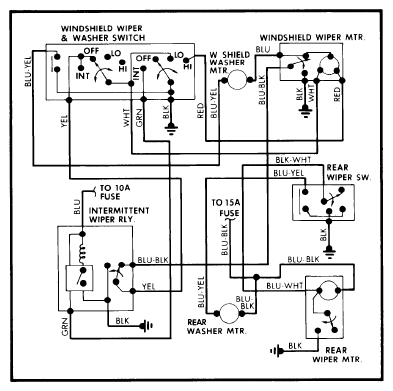

Fig 2: Mazda GLC Wagon Wiring Diagram

G09323031

Courtesy of MAZDA MOTORS CORP.

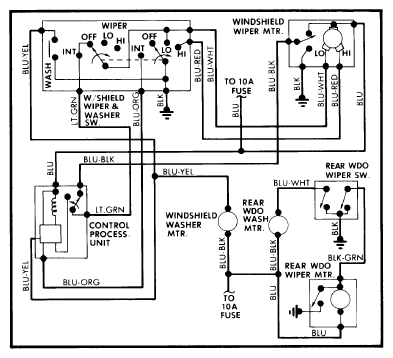

Fig 3: Mazda RX7 Wiring Diagram

G09323032

Courtesy of MAZDA MOTORS CORP.

Fig 4: Mazda B2000 Wiring Diagram

G09323033

Courtesy of MAZDA MOTORS CORP.

Fig 5: Mazda 626 Wiring Diagram

G09323034

Courtesy of MAZDA MOTORS CORP.
