Toe-In

FRONT

1. Loosen left and right tie rod locknuts.
2. Turn both tie rods the same amount until specified adjustment is obtained. Both tie rods have right hand threads.
3. Torque tie rod locknut to 25-29 ft.lbs. on GLC and 2 wheel drive 323 models, 25-37 ft.lbs. on 323 models with all wheel drive, 51-58 ft.lbs. on 1984-87 626, 1984-88 RX-7 and Pickup models and 1988 929, or 51-72 ft.lbs. on 1988 626 and MX-6 models.
4. If boot is twisted, loosen boot band and straighten.




REAR

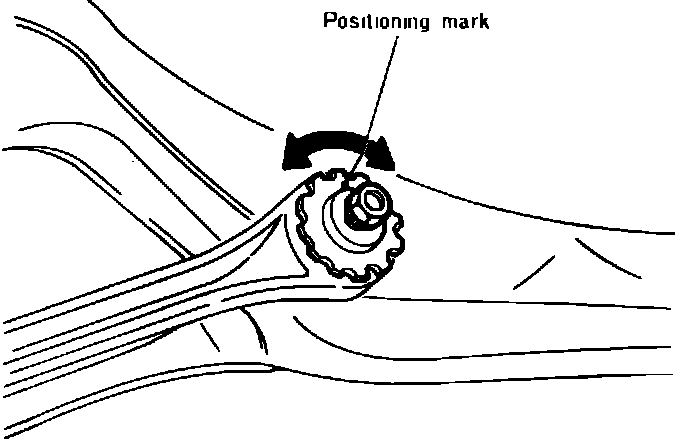

Fig. 4 Toe-in adjustment:

1. Loosen front lateral link inner attaching nut, then retorque nut to 52-63 ft.lbs.
2. Adjust toe-in by turning spacer, Fig. 4.
3. After adjustment is completed, torque attaching nut to 69-86 ft.lbs.
