Emission Control Systems: Application and ID

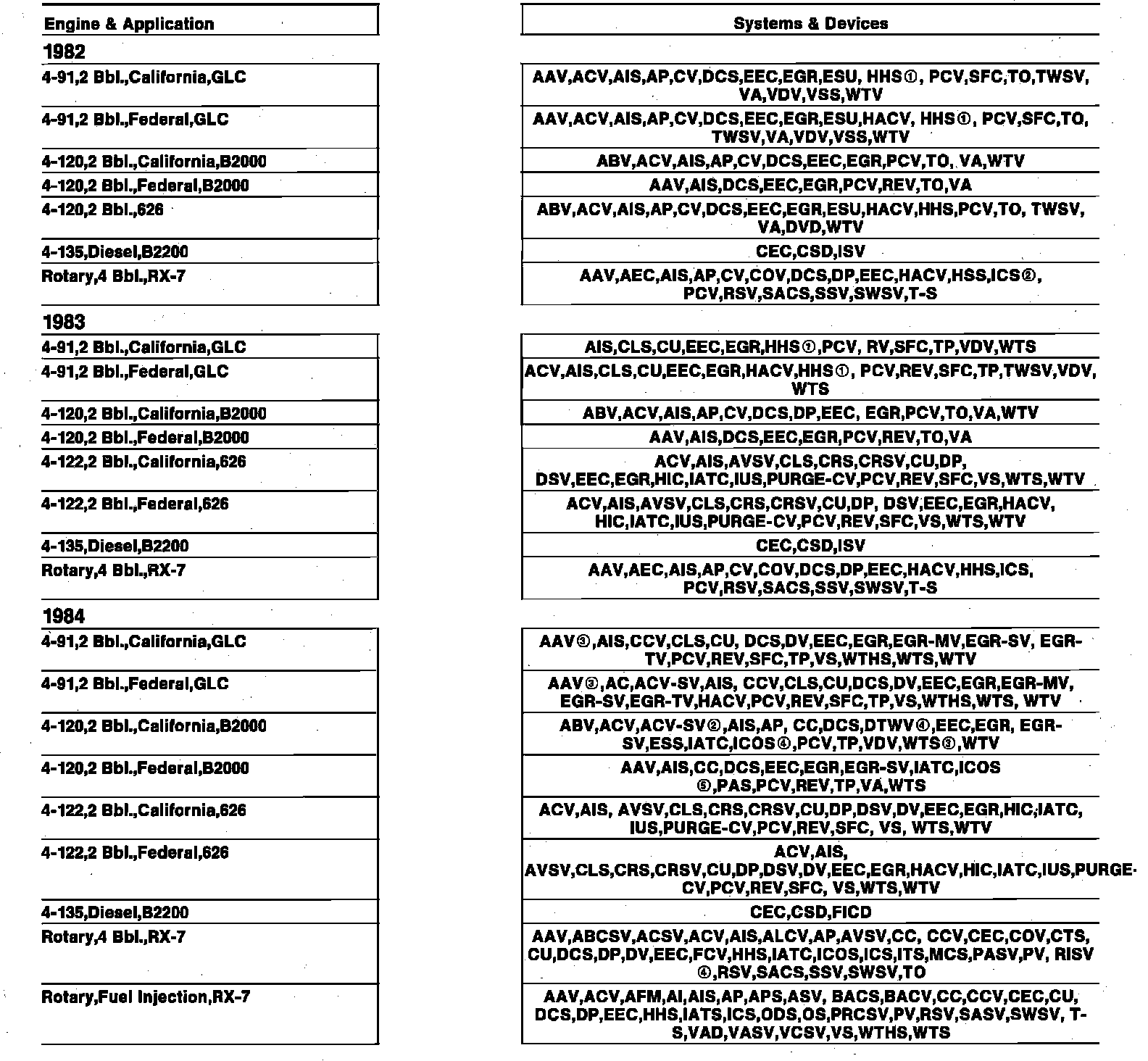

Fig. 1a Application Chart:

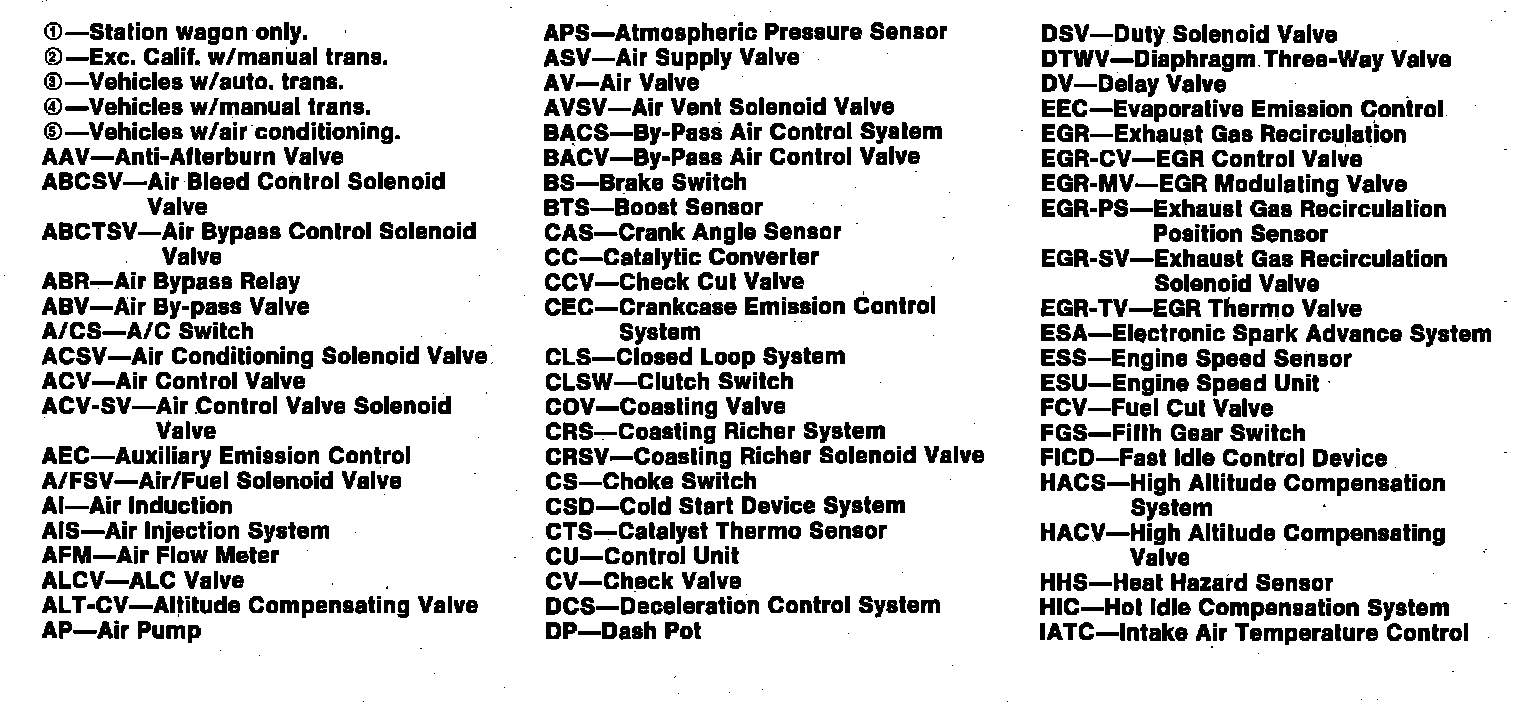

Fig. 1b Application Chart:

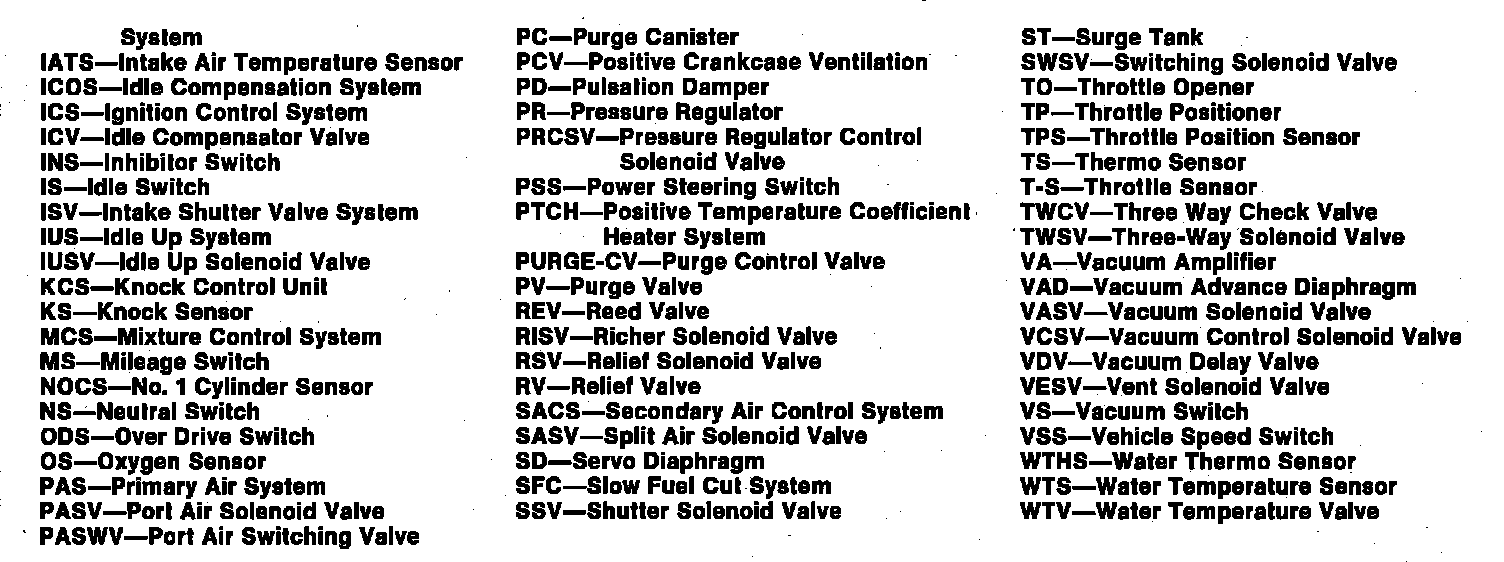

Fig. 1c Application Chart:
