MAZDA Piston Engine Vacuum Diagrams

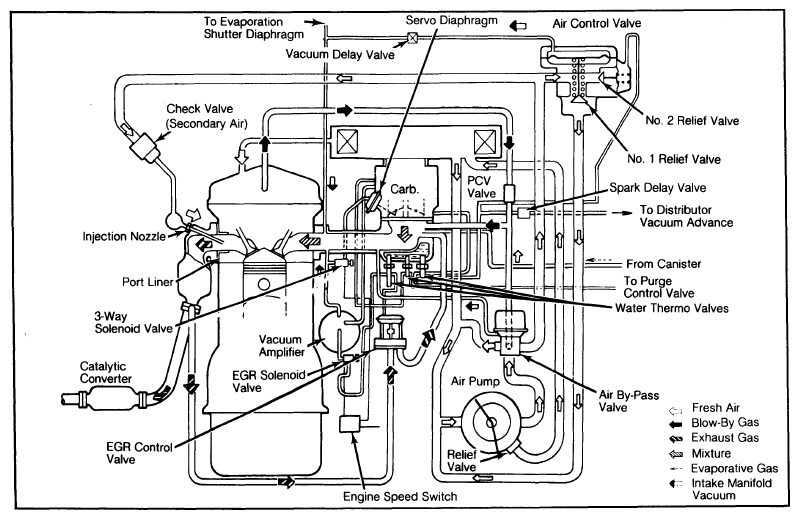

Fig 1: Mazda B2000 Vacuum Diagram (Calif. Models)

Courtesy of MAZDA MOTORS CORP.

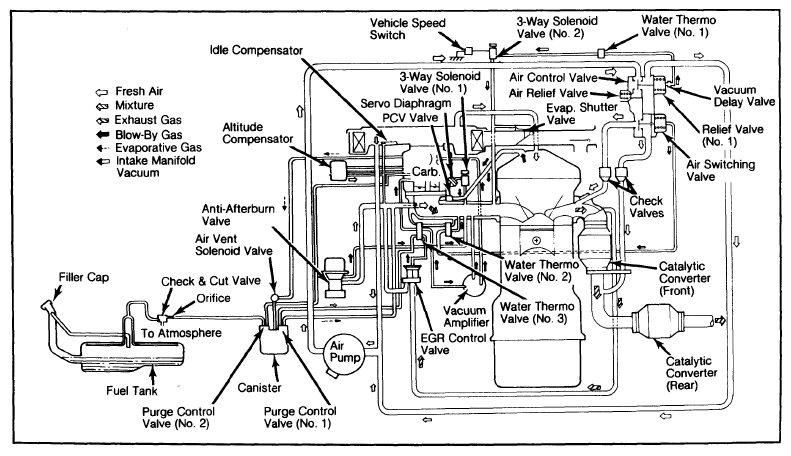

Fig 2: Mazda B2000 Vacuum Diagram (Federal Models)

Courtesy of MAZDA MOTORS CORP.

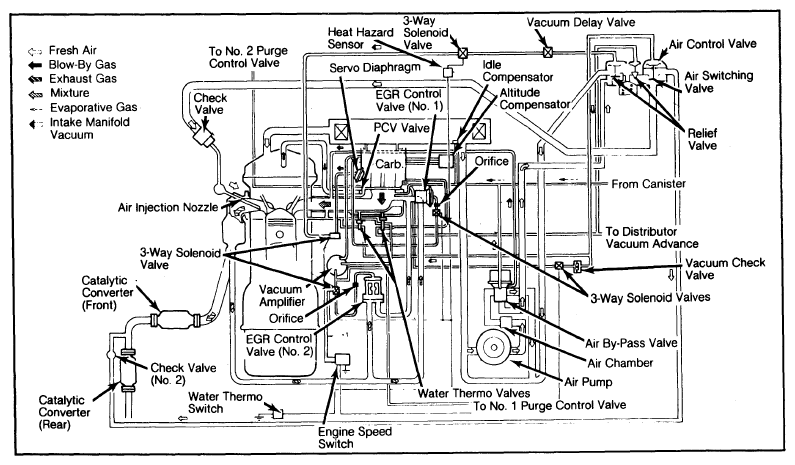

Fig 3: Mazda GLC FWD Vacuum Diagram

Courtesy of MAZDA MOTORS CORP.

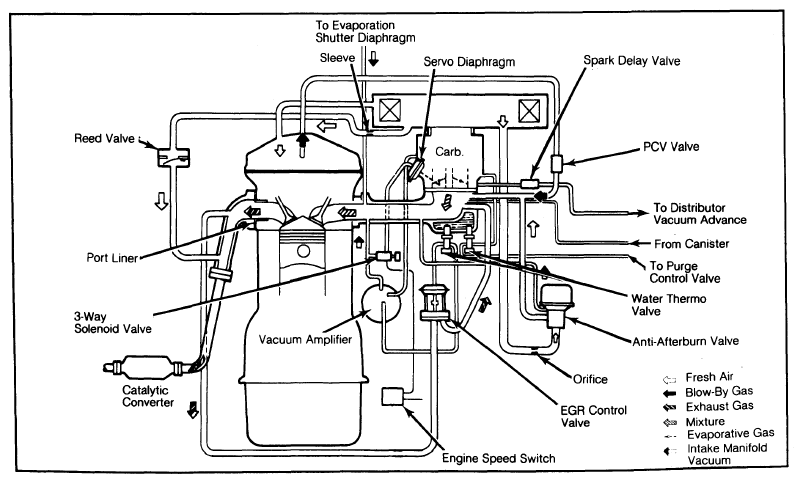

Fig 4: Mazda GLC Wagon Vacuum Diagram

Courtesy of MAZDA MOTORS CORP.

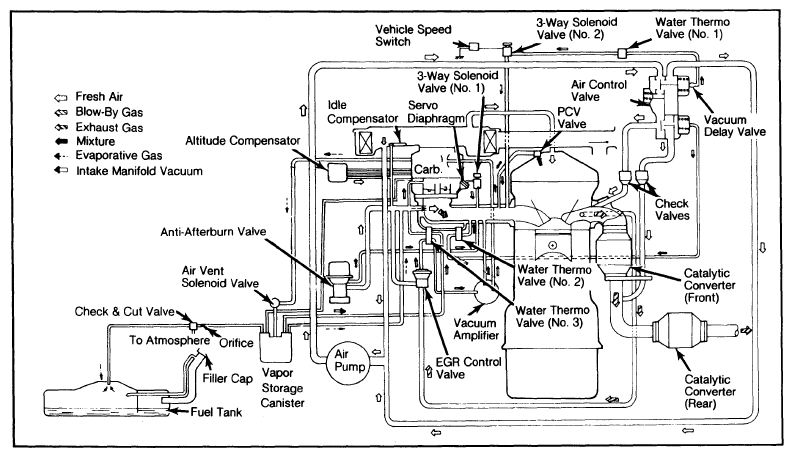

Fig 5: Mazda 626 Vacuum Diagram

Courtesy of MAZDA MOTORS CORP.
