Volume Test

With fuel pressure within limits, open restrictor for one minute and measure fuel expelled. If not within specifications, check for restrictions in tank, line or filter. Replace pump if required.

SPECIFICATIONS

Application	Pressure psi (kg/cm² )	Volume oz./minute
Courier	2.8-3.6 (.20-.25)	32
626	2.8-3.6 (.20-.25)	26
RX7	3.7-4.7 (.26-.33)	37
B2000	2.8-3.6 (.20-.25)	26

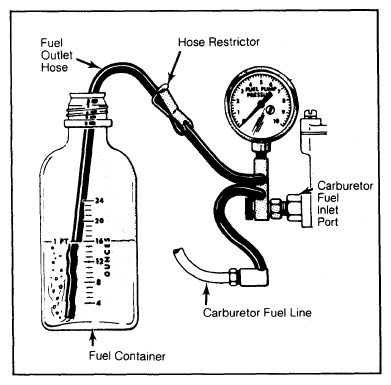

Fig 1: Fuel Pump Pressure and Volume Test

Courtesy of FORD MOTOR CO.
