COURIER 2300 cc: Reassembly

Reverse disassembly procedure. When installing cam, align marks on distributor housing and gear. Align rotor metal end with clip mounting lug on side of distributor with mounting slot.

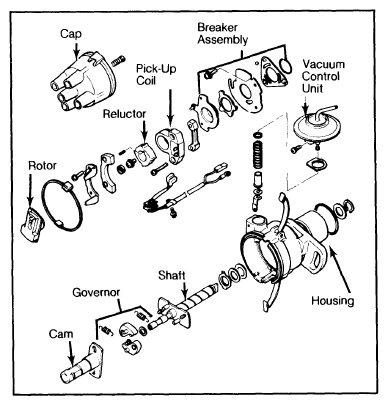

Fig 1: Exploded View of Mazda Distributor

Courtesy of NOT AVAILABLE

GLC model is shown, others are similar.

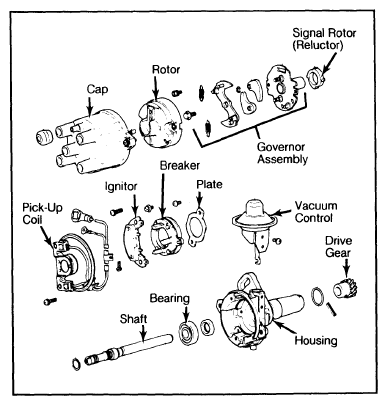

Fig 2: Exploded View of Chrysler Corp. Distributor

Courtesy of NOT AVAILABLE

Courier 2000 cc model is similar.
