RX7 & 626: Notes
- Caster and camber angles are adjusted together by changing position of MacPherson strut support. To adjust, remove 4 nuts attaching MacPherson strut support to fender apron.

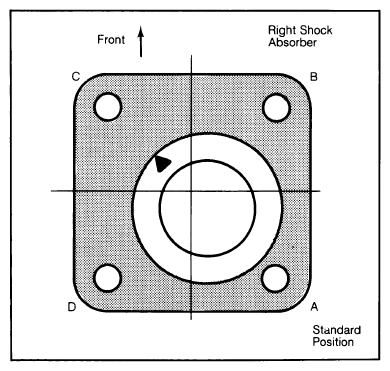

- Raise front of vehicle and support with jack stands. Remove wheel on side to be adjusted. Press MacPherson strut downward and change position of support according to table and Fig 1 . MacPHERSON STRUT SUPPORT TABLE
Strut Position Caster Camber A 0° 0° 0° B 90° 1/2° 0° C 180° 1/2° 1/2° D 270° 0° 1/2° - Tighten MacPherson strut support mounting nuts. Install wheel, lower vehicle and recheck caster and camber.
