Thermostatic Air Cleaner: Operation

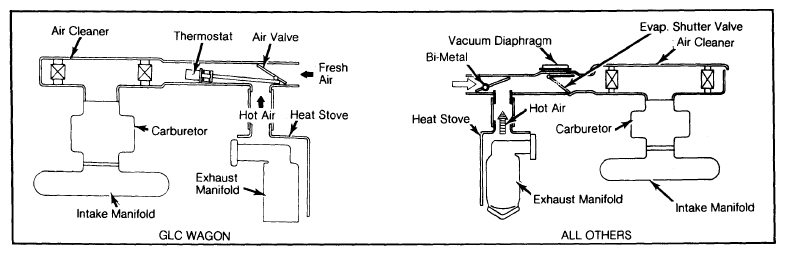

When engine is cold, the thermostat in snorkel senses low air temperature and closes the air door to prevent entry of cold, outside air. At this point, only heated air from around the manifold shroud enters carburetor. As the thermostat senses warmer temperatures, it begins to close off the air door to heated air and allow outside air into the carburetor. In this manner, the temperature of incoming air can be controlled.
