Mazda
>>
1982
>>
GLC L4-1490cc 1.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Wagon
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wagon

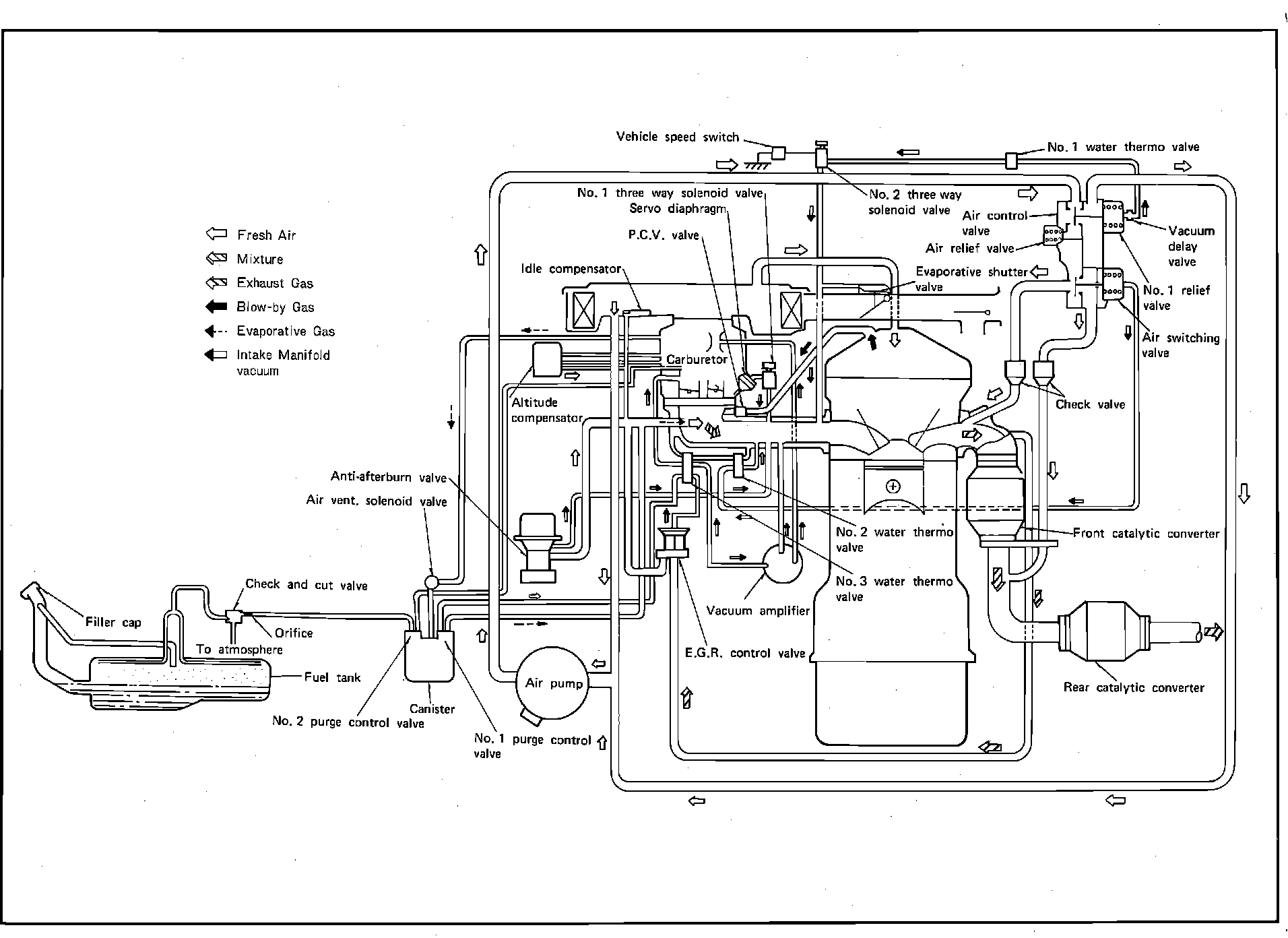

Fig. 14 System diagram:
