Choke Relay

  1. Disconnect coupler from relay. With engine off and no power applied, check continuity of terminals.

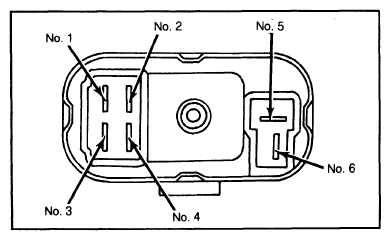

    Fig 1: Choke Relay Terminal Locations
    G09323275Courtesy of MAZDA MOTORS CORP.
  2. There should be continuity between No. 1 and No. 2. There should be no continuity between No. 3 and No. 4.
  3. Connect a wire from battery positive post to terminal No. 6 and battery negative post to terminal No. 5.
  4. There should be continuity between No. 3 and No. 4. There should be no continuity between No. 1 and No. 2.
Fig 2: Choke Switch Terminal Locations
G09323276Courtesy of MAZDA MOTORS CORP.
