Man. Trans. Only

  1. Disconnect electrical connector from air conditioner relay. Using an ohmmeter, check continuity between terminals.
  2. With engine off and no power applied, there should be continuity between No. 1 and No. 5. There should be no continuity between No. 1 and No. 3.
  3. Connect a wire from battery positive post to terminal No. 2 and battery negative post to terminal No. 4. There should be continuity between No. 1 and No. 3. There should be no continuity between No. 1 and No. 5.

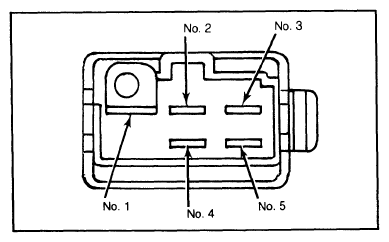

Fig 1: Air Conditioner Relay Terminals (Manual Transmission Only)
G09323268Courtesy of MAZDA MOTORS CORP.
