Base Ignition Timing Specifications

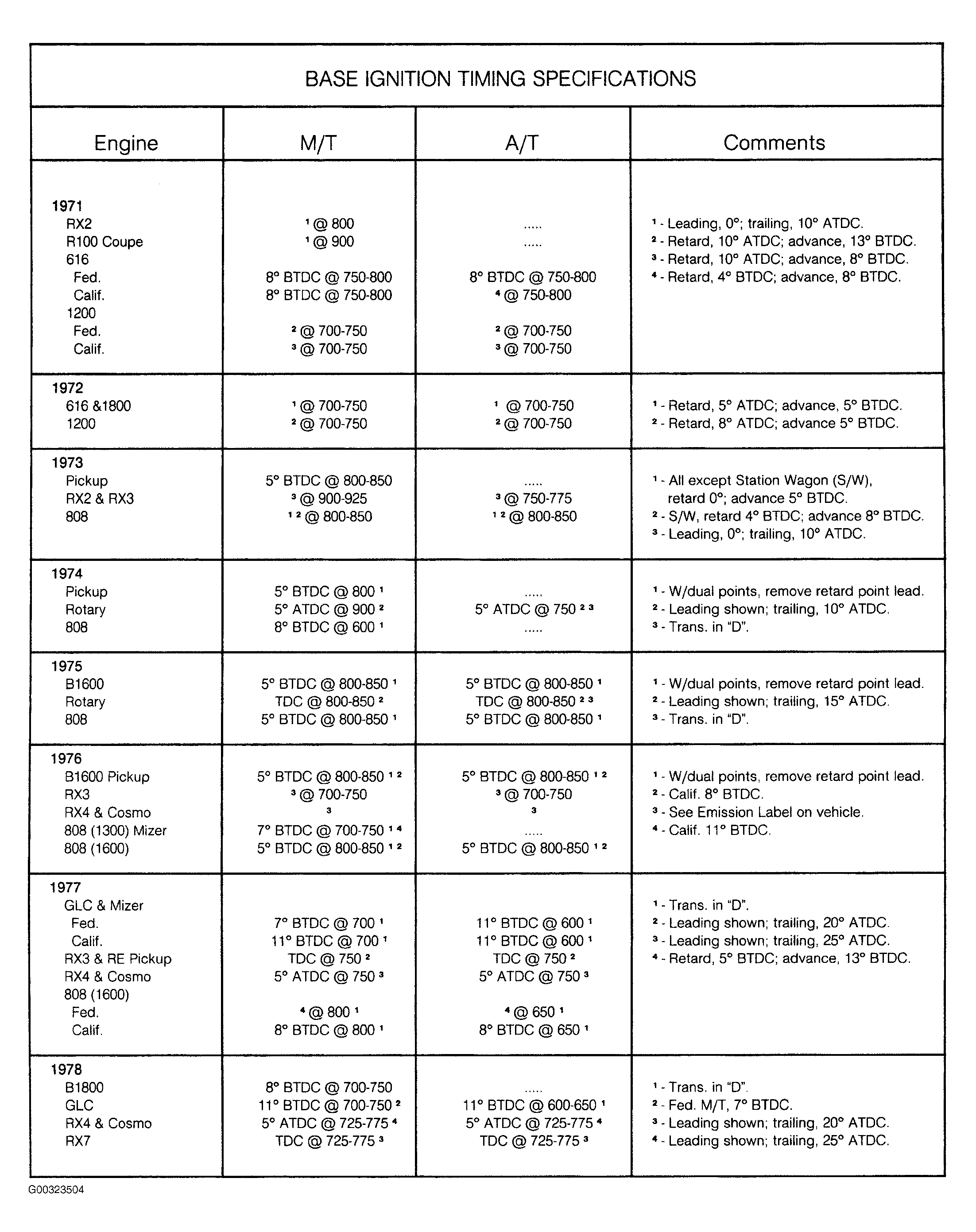

Fig 1:

G00323504

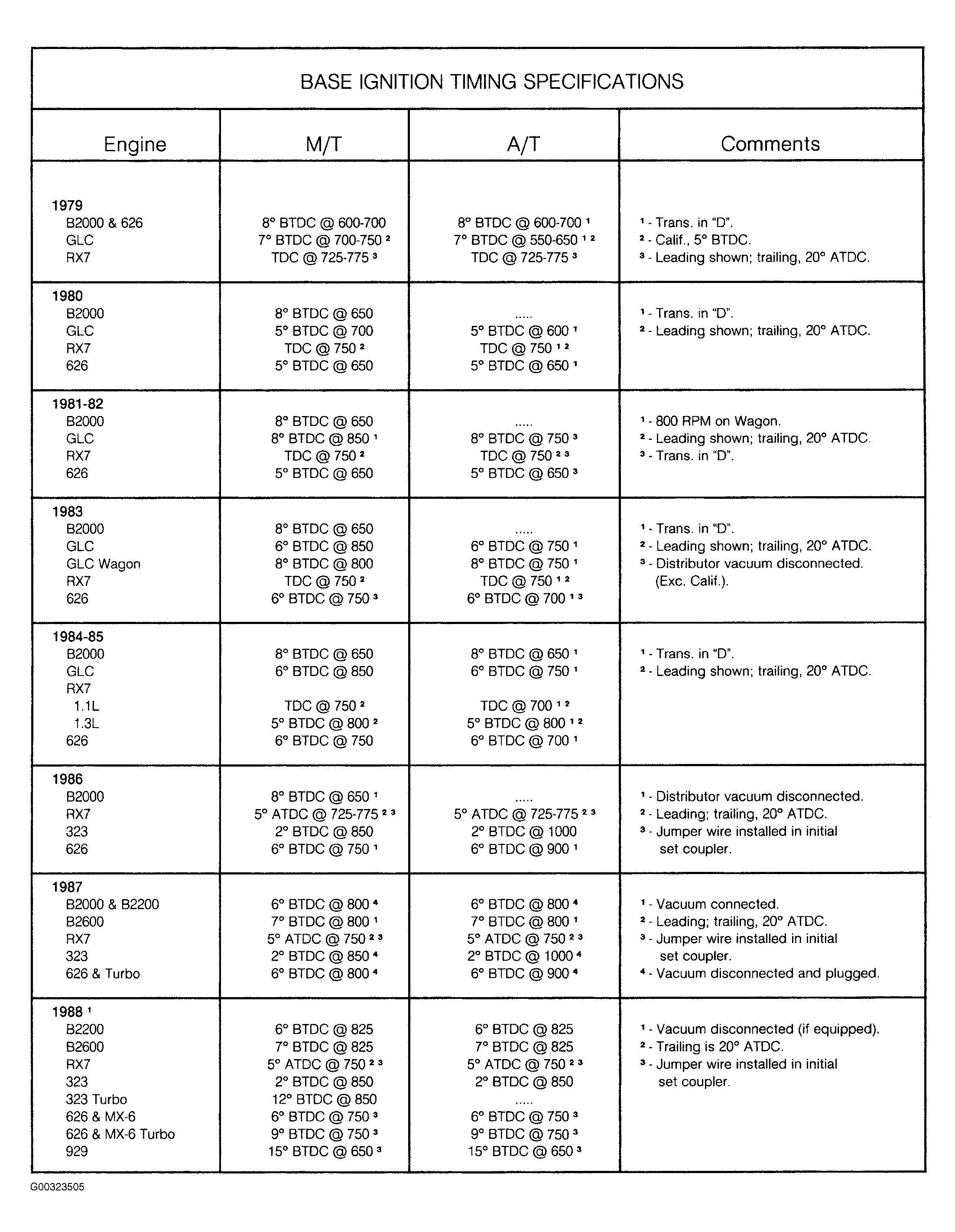

Fig 2:

G00323505

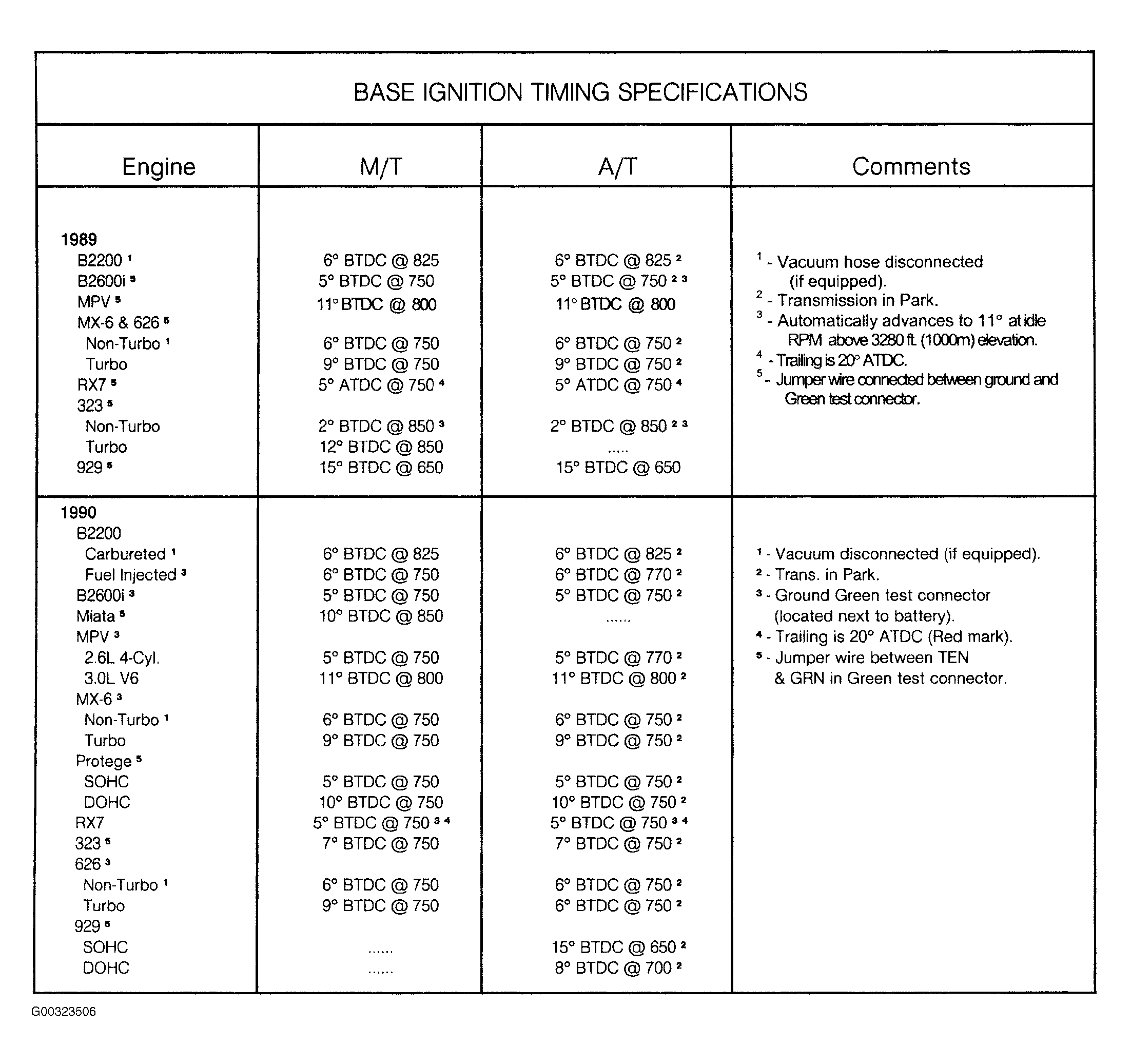

Fig 3:

G00323506

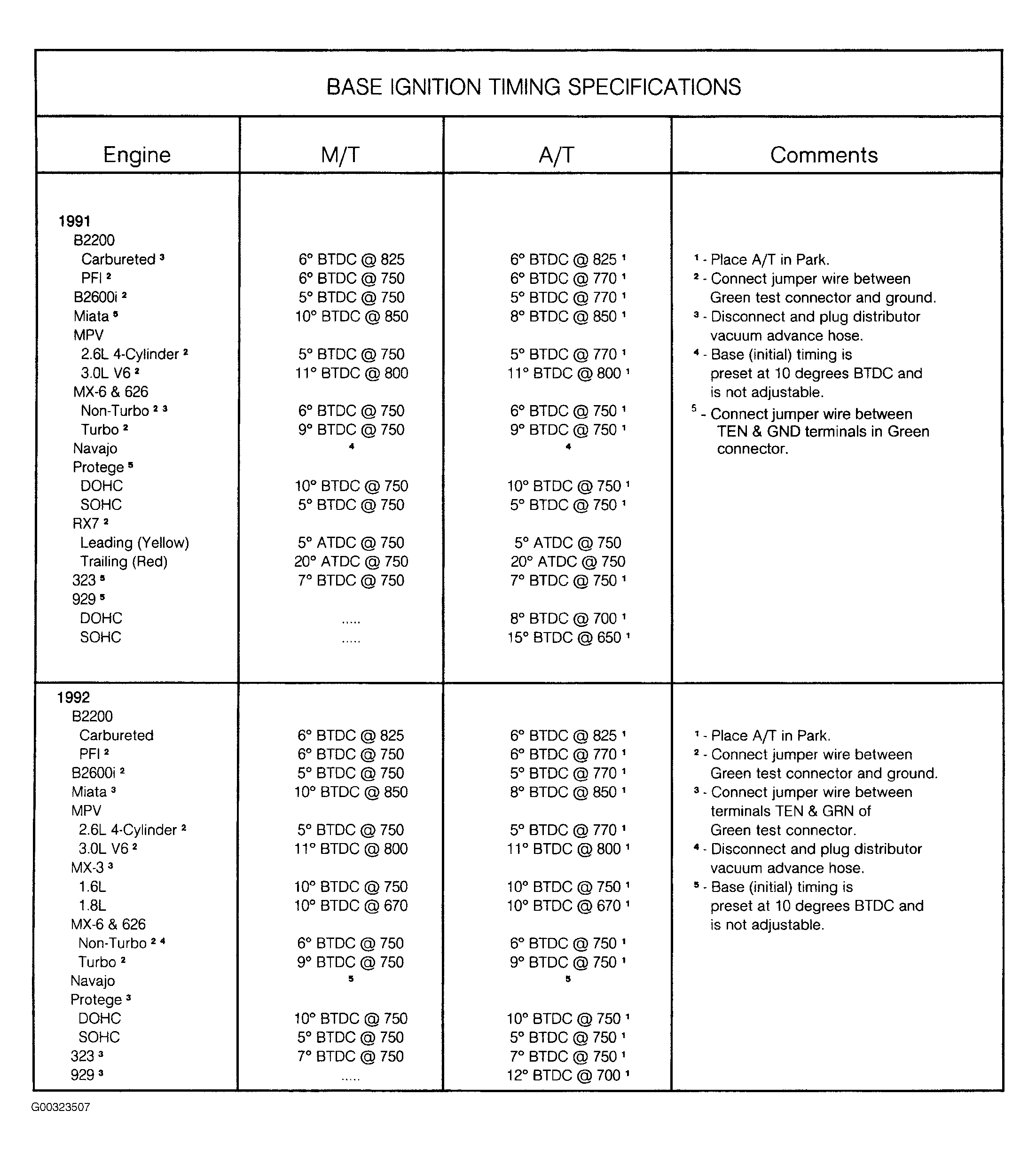

Fig 4:

G00323507

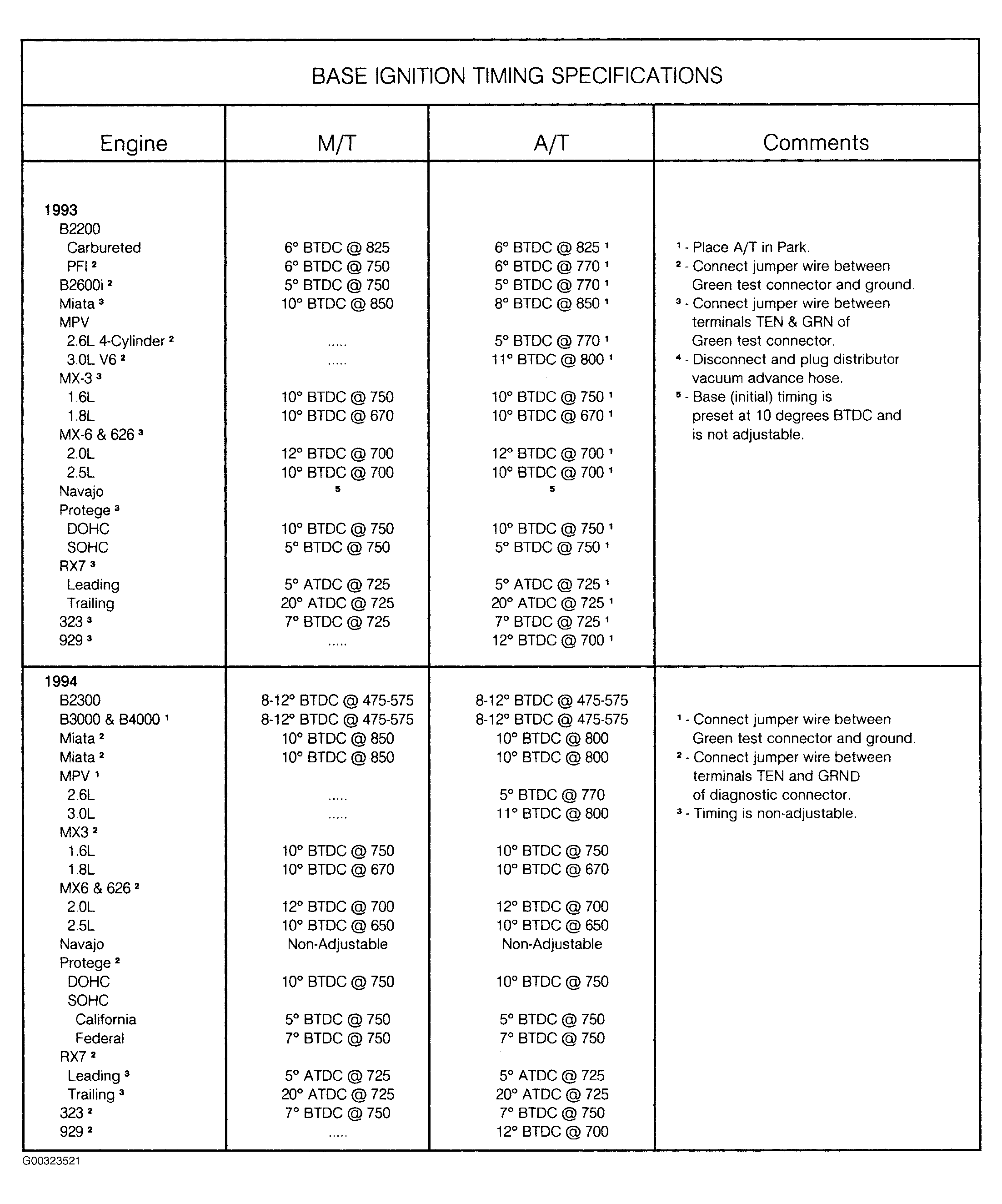

Fig 5:

G00323521

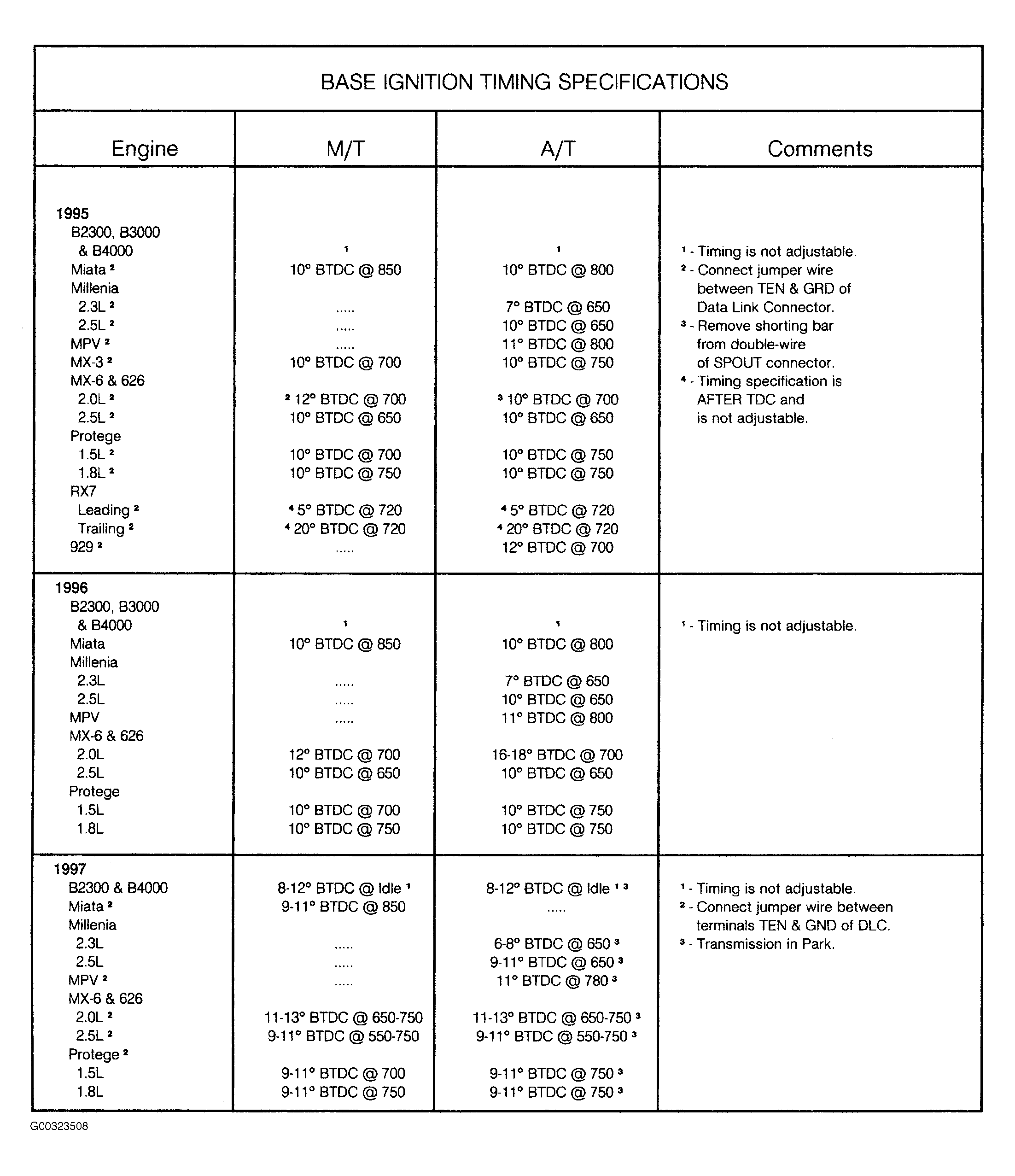

Fig 6:

G00323508

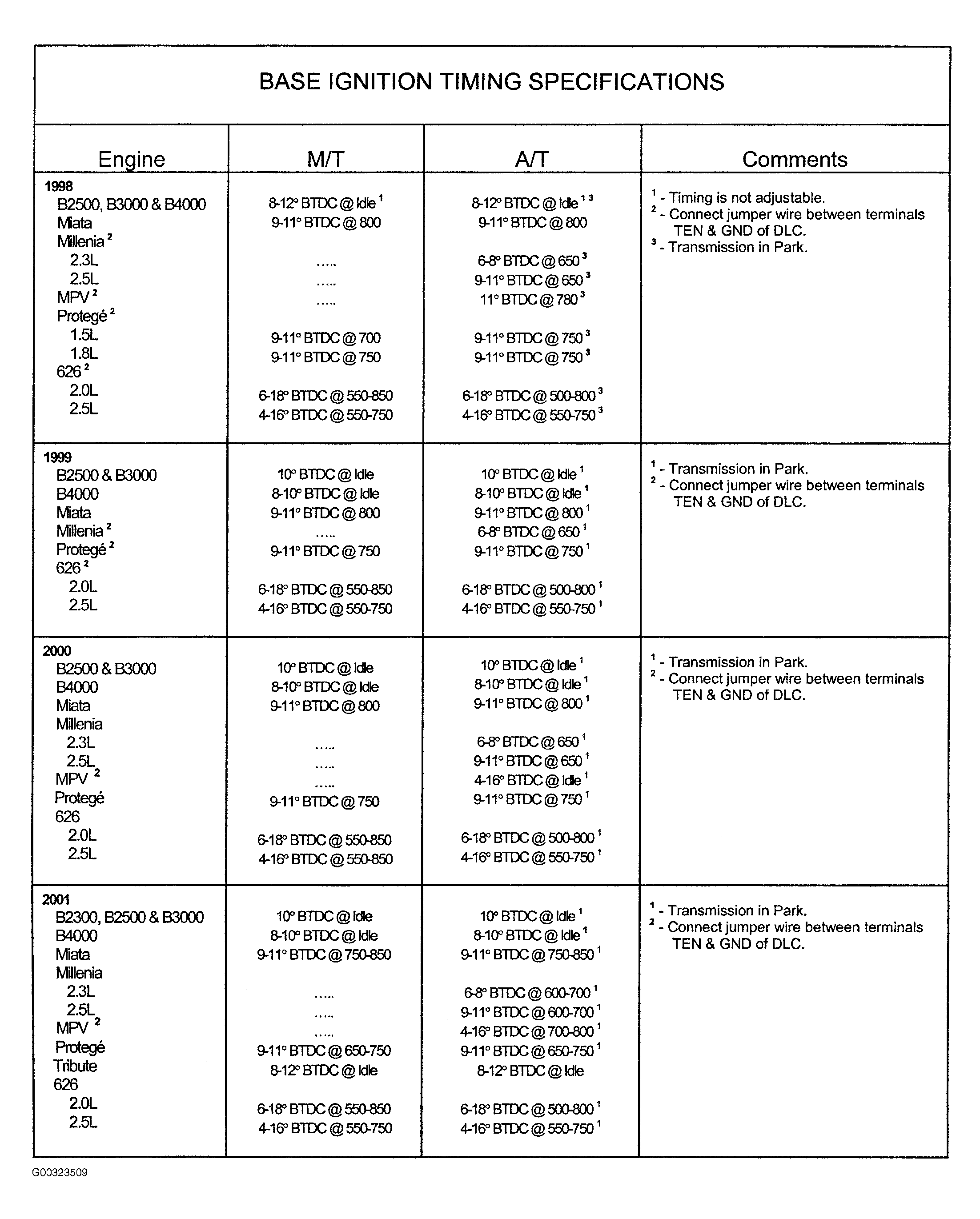

Fig 7:

G00323509

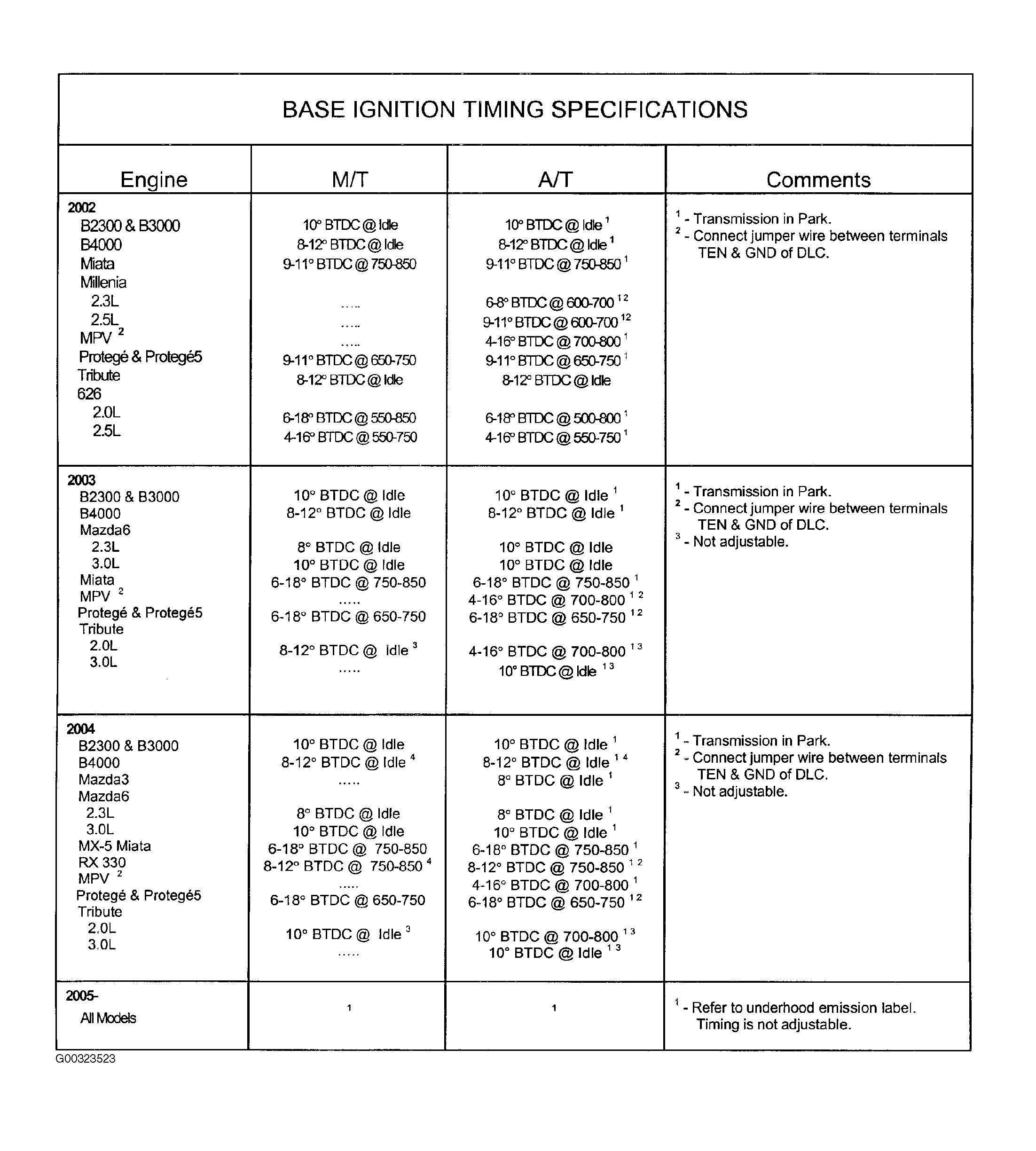

Fig 8:

G00323523
