3-Way Solenoid Valve
- On B2000 models the 3-way solenoid valve is located to the right of the master cylinder reservoir.
- Disconnect the 3-way solenoid-to-servo diaphragm sensing hose from the servo diaphragm. Disconnect the 3-way solenoid-to-intake manifold from the 3-way solenoid.

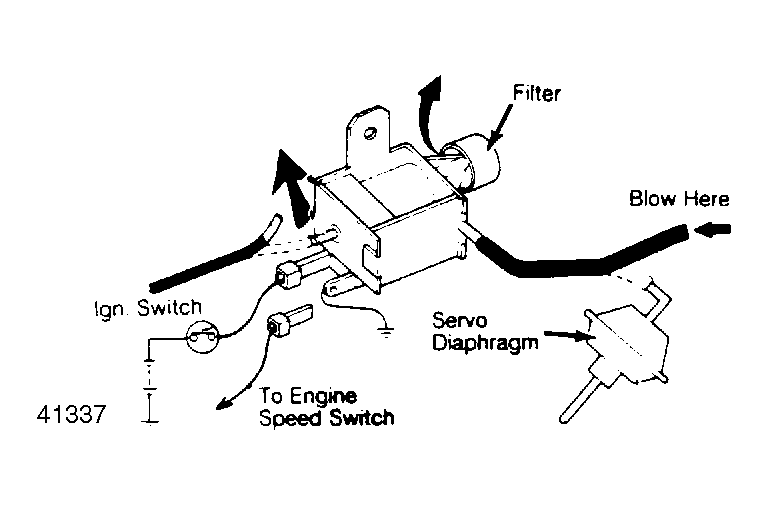

- Disconnect the Brown/Red wire from B2000 models. Ground the solenoid valve using a jumper wire. Connect 12V to other terminal. Blow air through the solenoid valve-to-servo diaphragm hose. Air should come out of the valve air filter.
- Disconnect 12V from solenoid valve. Air blown through the solenoid valve-to-servo diaphragm hose should now come out of the intake manifold port. See Figure .
