Fuel Evaporation System: Description
Fuel Evaporation system prevents escape of raw fuel vapors to atmosphere. Vehicles are equipped with a vapor valve instead of a vapor separator.

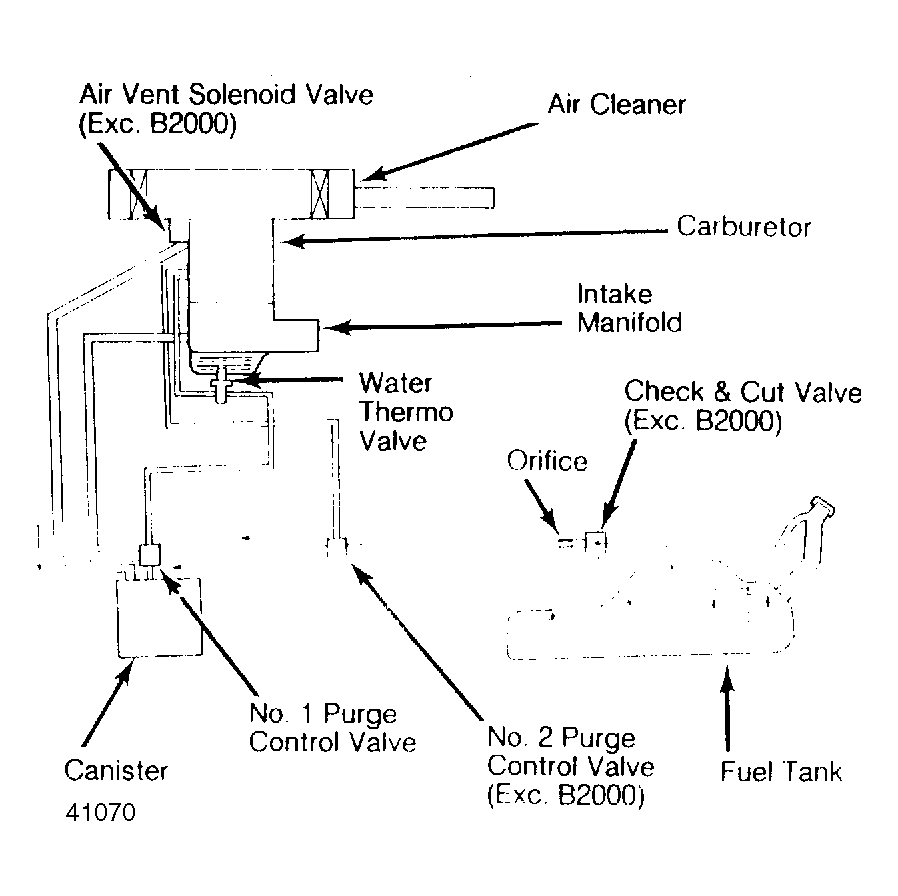

Additional components of system includes a purge control valve, a charcoal canister, a water thermo valve and connecting lines and hoses. A vacuum controlled evaporative shutter valve is installed.
