Air Induction System: Operation

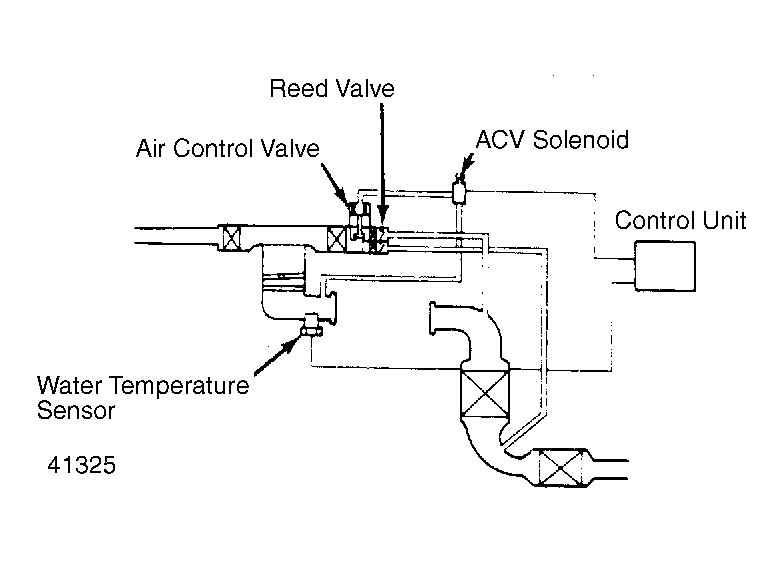

When exhaust system pressure pulsations are less than atmospheric pressure, reed valve is opened to incoming air. When exhaust pressure exceeds atmospheric pressure, reed valve is closed to incoming air. This valve also acts as a check valve.
On Federal models, air is injected down stream of the catalytic converter. The air control valve governs the injection of additional air up stream of the converter to help reduce emissions.
